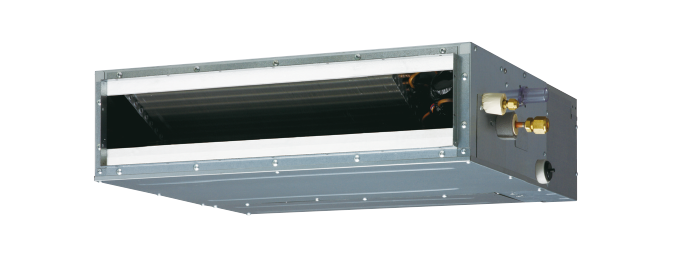

VRF Systems Indoor Unit Slim Duct / Slim Concealed Floor

ARGD07 / ARGD09 / ARGD12 / ARGD14

ARGD18

ARGD24

Download :
Catalog

Model

220-240V Single-Phase
ARGD07GATH
ARGD09GATH
ARGD12GATH
ARGD14GATH
ARGD18GATH
ARGD24GATH

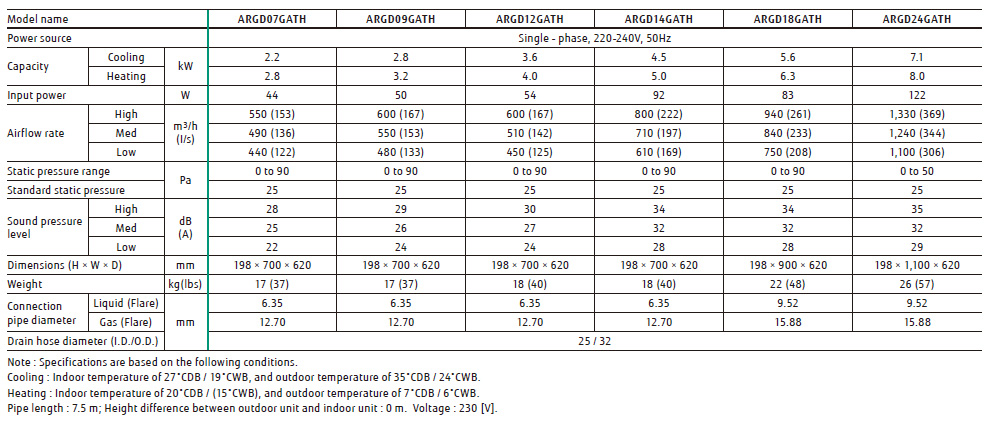

Specifications

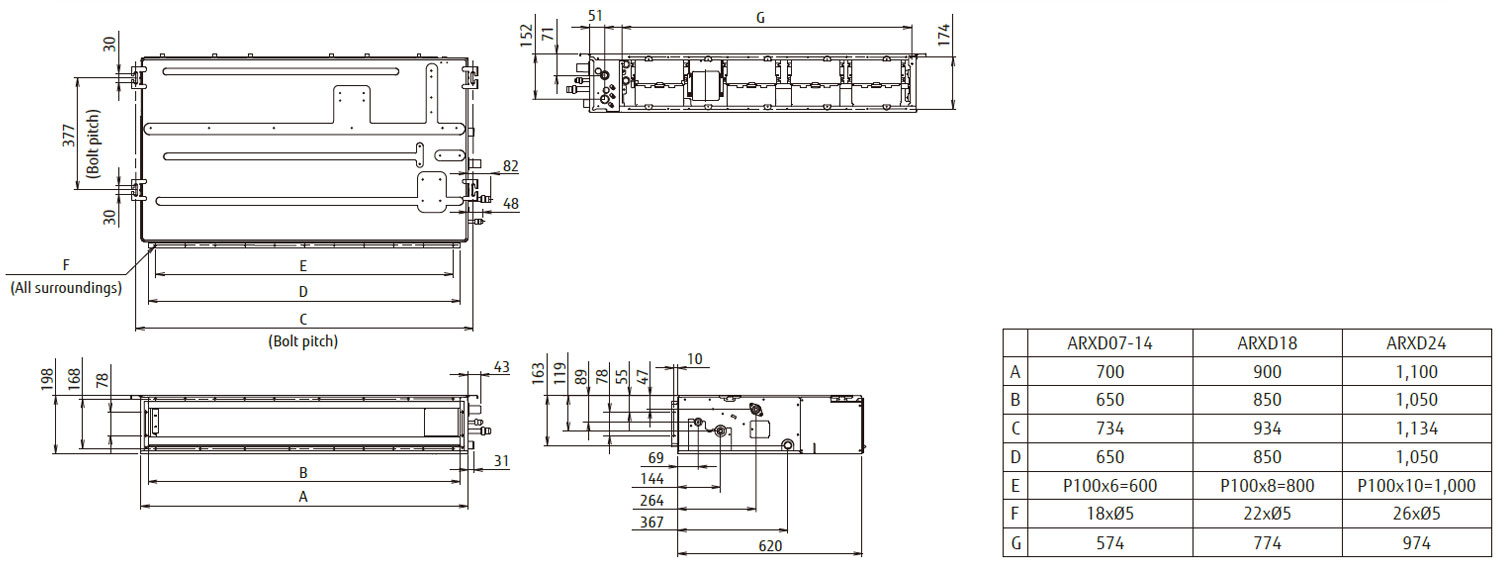

Dimensions

Feature

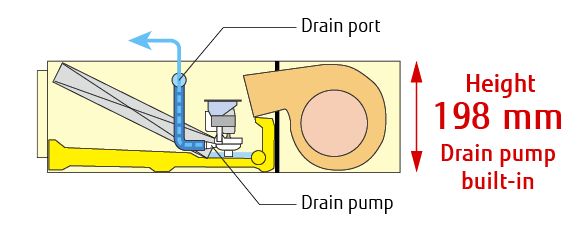

Slim design

With a slim indoor design, this indoor can be installed in narrow ceiling spaces.

Selectable with a wide range of static pressure

*24 model is 0 to 50Pa

By using DC fan motor, it is possible to change of static pressure range 0 to 90Pa. The change of static pressure range is possible by remote controller.

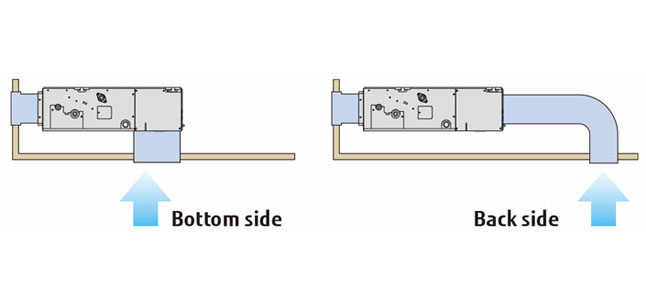

Air-intake

Air intake direction can be selected to match the installation site.

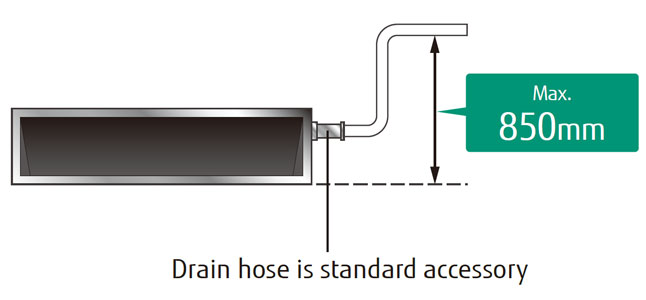

High lift drain pump

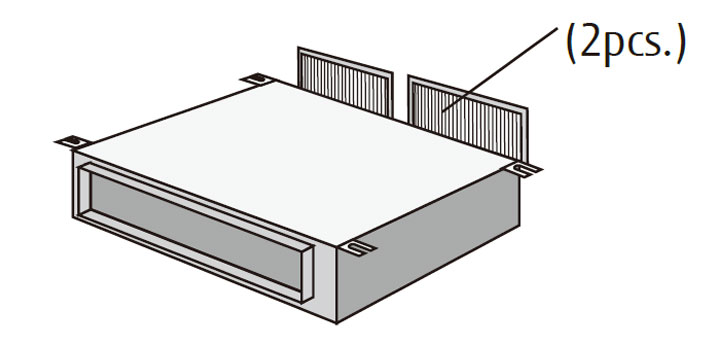

Filter (Accessory)

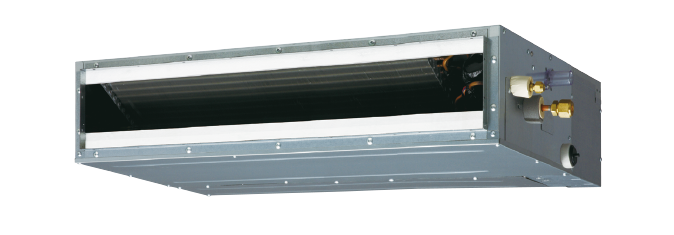

ARGD07 / 09 / 12 / 14 / 18

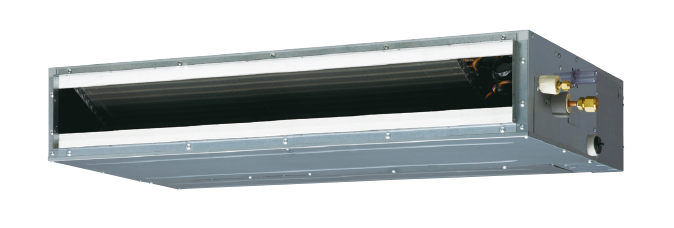

ARGD24

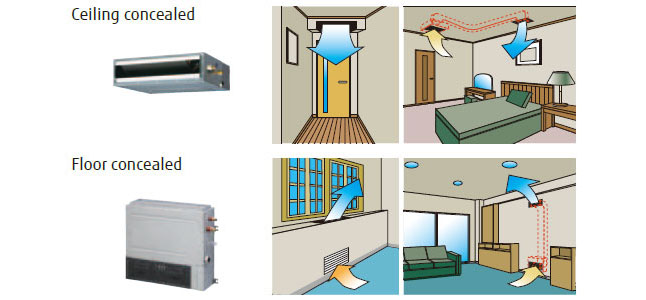

Flexible installation

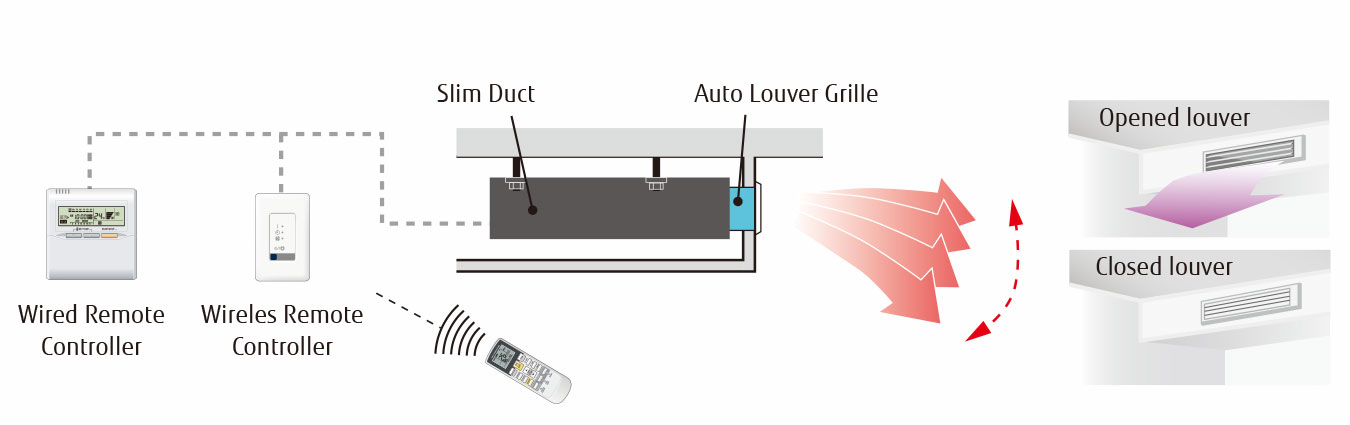

Auto Louver Grille Kit (Option)

Simple flat Auto Louver will provide comfort airflow and harmonize with luxury interior.

Optional parts

Remote Sensor Unit :
UTY-XSZX
IR Receiver Unit :
UTB-YWC
Auto Louver Grille Kit :
UTD-GXTA-W (for ARGD07/09/12/14GALH, ARGD07/09/12/14GATH)
UTD-GXTB-W (for ARGD18GALH, ARGD18GATH)
UTD-GXTC-W (for ARGD24GALH, ARGD24GATH)
