AIRSTAGE VRF Heat Pump for Small-capacity type J-VL Series AJH108KELAH [3Phase]

33.5 kW

33.5 kW (Nominal) / 37.5 kW (Max.)

Specifications

Rated Capacity Range	12 HP
Max. Number of Connectable Indoor Units^*1	1 - 30
Connectable Capacity of Indoor Units	16.8 - 50.2 kW

Scroll

Power Source	Phase	3 phase 3N
	Voltage	400 V
	Frequency	50 Hz
Capacity	Cooling	33.5 kW
	Nominal Heating	33.5 kW
	Max. Heating	37.5 kW
Input Power	Cooling	9.28 kW
	Heating	7.57 kW
	Nominal Heating	7.57 kW
	Max. Heating	9.95 kW
EER	Cooling	3.61 W/W
COP	Nominal Heating	4.43 W/W
COP	Max. Heating	3.77 W/W
SEER	Cooling	8.27
SCOP	Heating	4.82
ηc	Cooling	327.8 %
ηh	Heating	189.8 %
Airflow Rate		11000 m³/h
Sound Pressure Level^*2	Cooling	58 dB(A)
Sound Pressure Level^*2	Heating	62 dB(A)
Sound Power Level	Cooling	73 dB(A)
Sound Power Level	Heating	75 dB(A)
Max. External Static Pressure		40 Pa
Compressor Motor Output		5.5 kW
Heat Exchanger Fin		Blue fin
Net Dimensions	Height	1428 mm
	Width	1080 mm
	Depth	480 mm
Net Weight		178 kg
Refrigerant	Type	R32
	Global Warming Potential	675
	Charge	6.5 kg (4.4 CO2eq–T)
Connection Pipe Diameter	Liquid	φ12.7 mm
Connection Pipe Diameter	Gas	φ22.22 mm
Total Pipe Length		400 m
Max. Height Difference (Outdoor Unit: Upper/Lower)		50 / 40 m
Operation Range	Cooling	-15 to 46 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

Note:: Specifications are based on the following conditions.
Cooling:: Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating:: Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length:: 11m (072/090), 15m (108/126/144/162); Height difference between outdoor unit and indoor unit: 0 m.
: The protective function may work when using it outside the operation range.

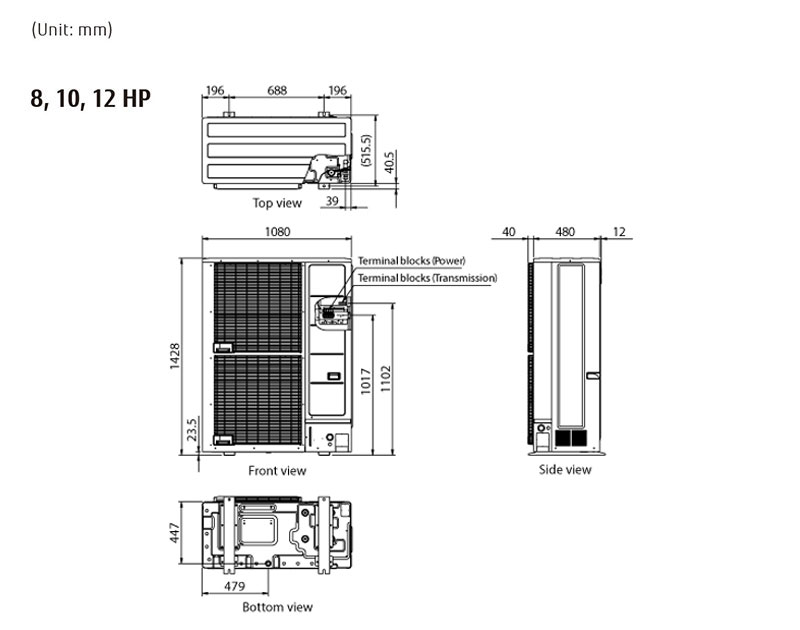

Dimensions AIRSTAGE VRF J-VL Series
