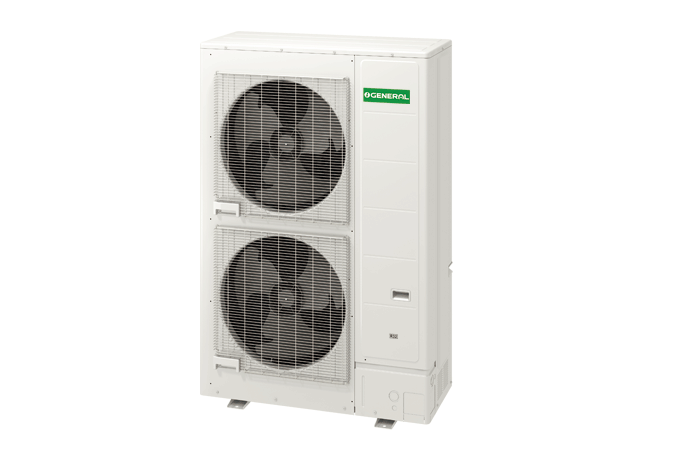

AIRSTAGE VRF Heat Pump for Small-capacity type J-VL Series AJH144KELAH [3Phase]
Features
- R32 Refrigerant with Reduced Global Warming Potential
- High Energy Saving
- High installation Flexibility
- Slim design yet large capacity
- Supports concealed installation
- Environmentally conscious with low-noise mode
Capacity
45.0 kW
45.0 kW
(Nominal) /
50.0 kW
(Max.)
Specifications
| Rated Capacity Range | 16 HP |
|---|---|
| Max. Number of Connectable Indoor Units*1 | 1 - 40 |
| Connectable Capacity of Indoor Units | 22.5 - 67.5 kW |
Scroll
| Power Source | Phase | 3 phase 3N |
|---|---|---|
| Voltage | 400 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 45.0 kW |
| Nominal Heating | 45.0 kW | |
| Max. Heating | 50.0 kW | |
| Input Power | Cooling | 13.77 kW |
| Heating | 10.98 kW | |
| Nominal Heating | 10.98 kW | |
| Max. Heating | 13.23 kW | |
| EER | Cooling | 3.27 W/W |
| COP | Nominal Heating | 4.10 W/W |
| Max. Heating | 3.78 W/W | |
| SEER | Cooling | 7.08 |
| SCOP | Heating | 4.52 |
| ηc | Cooling | 280.2 % |
| ηh | Heating | 177.8 % |
| Airflow Rate | 14000 m³/h | |
| Sound Pressure Level*2 | Cooling | 64 dB(A) |
| Heating | 67 dB(A) | |
| Sound Power Level | Cooling | 77 dB(A) |
| Heating | 78 dB(A) | |
| Max. External Static Pressure | 60 Pa | |
| Compressor Motor Output | 7.0 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions | Height | 1638 mm |
| Width | 1080 mm | |
| Depth | 480 mm | |
| Net Weight | 213 kg | |
| Refrigerant | Type | R32 |
| Global Warming Potential | 675 | |
| Charge | 9.0 kg (6.1 CO2eq–T) | |
| Connection Pipe Diameter | Liquid | φ12.7 mm |
| Gas | φ28.58 mm | |
| Total Pipe Length | 400 m | |
| Max. Height Difference (Outdoor Unit: Upper/Lower) |
50 / 40 m | |
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CDB | |
Scroll
- Note:
- Specifications are based on the following conditions.
- Cooling:
- Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
- Heating:
- Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
- Pipe length:
- 11m (072/090), 15m (108/126/144/162); Height difference between outdoor unit and indoor unit: 0 m.
- The protective function may work when using it outside the operation range.

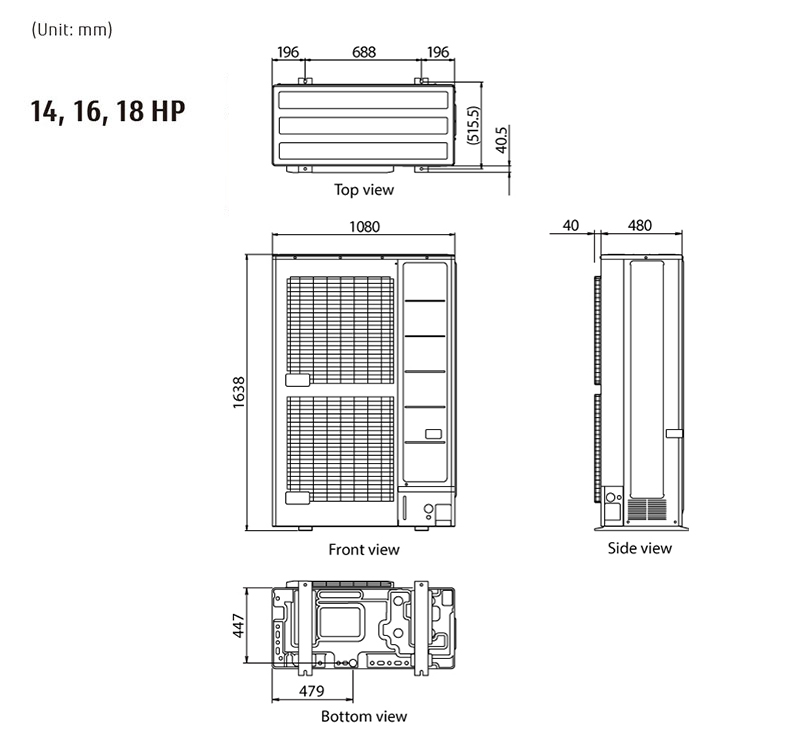

Dimensions
Outdoor Unit : AJH144KELAH
