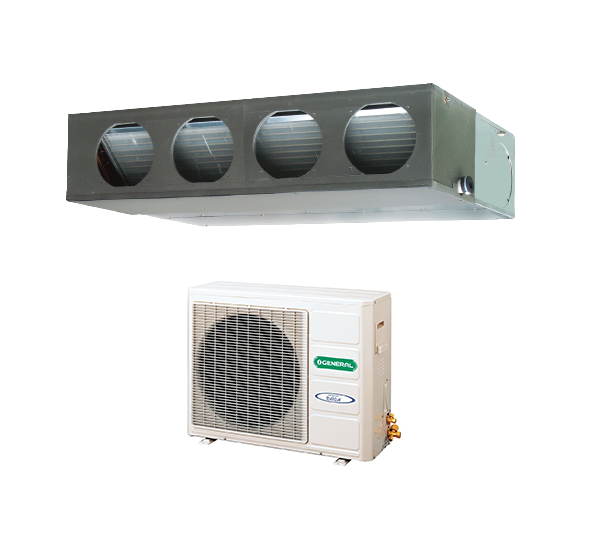

Duct ARG25FUAN
Features
- Slim & Compact design
- Two-direction drain piping
- Easy maintenance
- Low noise
- Plastic fan
Capacity
7.050 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 7.050 kW | |
| Input Power | Cooling | 2.600 kW | |
| EER | Cooling | 2.71 W/W | |
| Moisture Removal | 2.5 l/h | ||
| Sound Pressure Level*2 | Indoor (Cooling) | High | 38 dB(A) |
| Sound Pressure Level*2 | Outdoor (Cooling) | High | 53 dB(A) |
| Airflow Rate | Indoor (Cooling) | High | 1100 m³/h |
| Outdoor (Cooling) | High | 3200 m³/h | |
| Static Pressure Range (standard) | 30 - 150 (100) Pa | ||
| Net Dimensions Indoor |
Height | 270 mm | |
| Width | 1135 mm | ||
| Depth | 700 mm | ||
| Net Dimensions Outdoor |
Height | 650 mm | |
| Width | 830 mm | ||
| Depth | 320 mm | ||
| Net Weight | Indoor | 43.0 kg | |
| Outdoor | 58 kg | ||
| Connection Pipe Diameter | Liquid | φ9.52 mm | |
| Gas | φ15.88 mm | ||
| Max. Pipe Length (Pre Charge) | 25 (7.5) m | ||
| Max. Height Difference | 15 m | ||
| Refrigerant | Type | R410A | |
| Global Warming Potential | 2088 | ||
| Charge | 1550 g | ||
