Signal Amplifier UTY-VSGXZ1

Adapters & Converters

Download :
Catalogues

Features

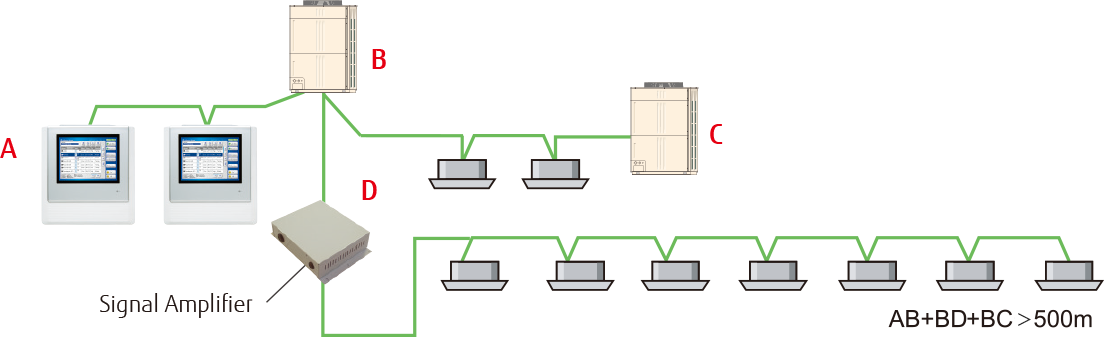

(1) When the total wiring length of the transmission line exceeds 500 m or

(2) When the number of units on the transmission line exceeds 64,

  • A Signal Amplifier is required.
  • The transmission line can be extended up to 3,600 m using multiple Signal Amplifiers.
  • Up to 8 Signal Amplifiers can be added in a VRF network system.

Specifications

Model Name UTY-VSGXZ1
Power Supply Phase Single phase
Voltage 208 ~ 240 V
Frequency 50/60 Hz
Net Dimensions Height 67 mm
Width 288 mm
Depth 211 mm
Net Weight 1,500 g
Power Consumption 4.5 W
