4-way Cassette (Large Type) AUXA45GALH
12.5 kW
14.0 kW
Specifications
| Power Source | Phase | Single phase |
|---|---|---|
| Voltage | ~230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 12.5 kW |
| Heating | 14.0 kW | |
| Input Power | 99 W | |
| Airflow Rate | High | 1,900 m3/h |
| Middle | 1,370 m3/h | |
| Low | 1,100 m3/h | |
| Sound Pressure Level*2 | High | 46 dB(A) |
| Middle | 39 dB(A) | |
| Low | 33 dB(A) | |
| Net Dimensions | Height | 288 mm |
| Width | 840 mm | |
| Depth | 840 mm | |
| Net Weight | 27 kg (59 lbs) | |
| Connection Pipe Diameter | Liquid (Flare) | 9.52 mm |
| Gas (Flare) | 19.05 mm | |
| Drain Hose Diameter | Indoor | 25 mm |
| Outdoor | 32 mm | |
Scroll
| Cassette Grille Model Name | UTG-UGYA-W | ||
|---|---|---|---|
| Net Dimensions Cassette Grille |
Height | 50 mm | |
| Width | 950 mm | ||
| Depth | 950 mm | ||
| Net Weight Cassette Grille |
5.5 kg (12 lbs) | ||
Scroll
- Note:
- Specifications are subject to the following conditions:
- Cooling:
- Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
- Heating:
- Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
- Pipe length:
- 7.5 m Height difference between outdoor unit and indoor unit: 0 m
- Voltage:
- 230 V

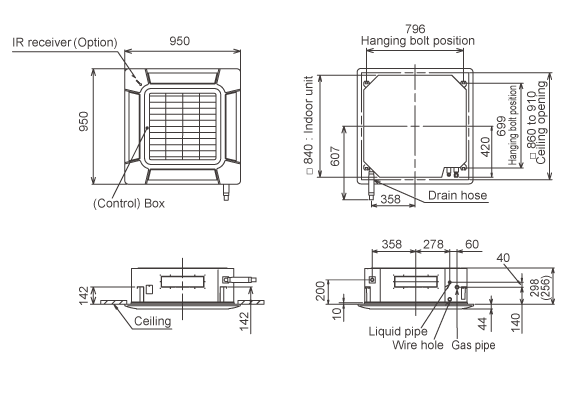

Dimensions
Indoor Unit : AUXA45GALH
