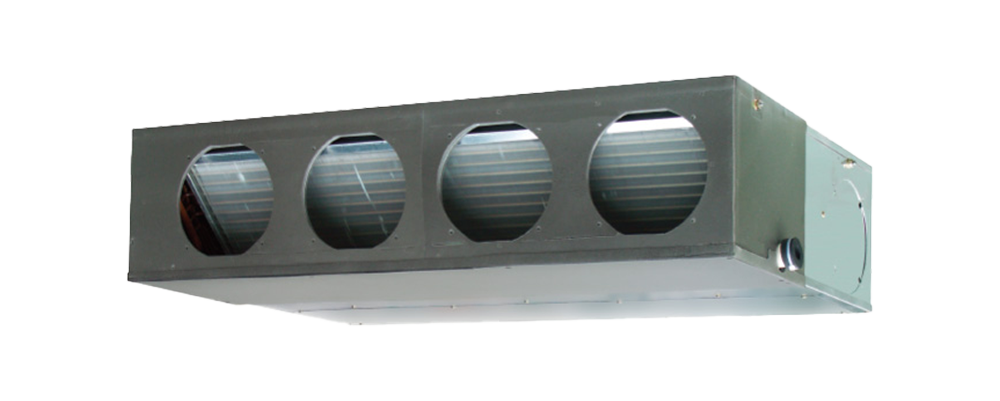

Medium Static Pressure Duct ARXA24GBTH
Features
- Slim & Compact design
- Easy maintenance
- Selectable with a wide range of static pressure
- Easy setting by using remote controller
- Can be installed for various location
- Installation styles
- Two-direction drain piping
- Optional parts
Capacity
7.1 kW
8.0 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 7.1 kW | |
| Heating | 8.0 kW | ||
| Input Power | 94 W | ||
| Airflow Rate | Cooling | High | 1280 m³/h |
| Middle | 990 m³/h | ||
| Low | 840 m³/h | ||
| Heating | High | 1280 m³/h | |
| Middle | 990 m³/h | ||
| Low | 840 m³/h | ||
| Static Pressure Range | 0 to 150 Pa | ||
| Standard Static Pressure | 40 Pa | ||
| Sound Pressure Level*2 | Cooling | High | 31 dB(A) |
| Middle | 27 dB(A) | ||
| Low | 23 dB(A) | ||
| Heating | High | 31 dB(A) | |
| Middle | 27 dB(A) | ||
| Low | 23 dB(A) | ||
| Net Dimensions | Height | 270 mm | |
| Width | 1135 mm | ||
| Depth | 700 mm | ||
| Net Weight | 36.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ9.52 mm | |
| Gas (Flare) | φ15.88 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
