Low Static Pressure Duct ARXB24GALH
7.1 kW
8.0 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 7.1 kW | |
| Heating | 8.0 kW | ||
| Input Power | 145 W | ||
| Airflow Rate | Cooling | High | 1100 m³/h |
| Middle | 920 m³/h | ||
| Low | 810 m³/h | ||
| Heating | High | 1100 m³/h | |
| Middle | 920 m³/h | ||
| Low | 810 m³/h | ||
| Static Pressure Range | 0 to 80 Pa | ||
| Standard Static Pressure | 40 Pa | ||
| Sound Pressure Level*2 | Cooling | High | 31 dB(A) |
| Middle | 27 dB(A) | ||
| Low | 25 dB(A) | ||
| Heating | High | 31 dB(A) | |
| Middle | 27 dB(A) | ||
| Low | 25 dB(A) | ||
| Net Dimensions | Height | 270 mm | |
| Width | 1135 mm | ||
| Depth | 700 mm | ||
| Net Weight | 39 kg | ||
| Connection Pipe Diameter | Liquid () | 9.52 mm | |
| Gas () | 15.88 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
Scroll

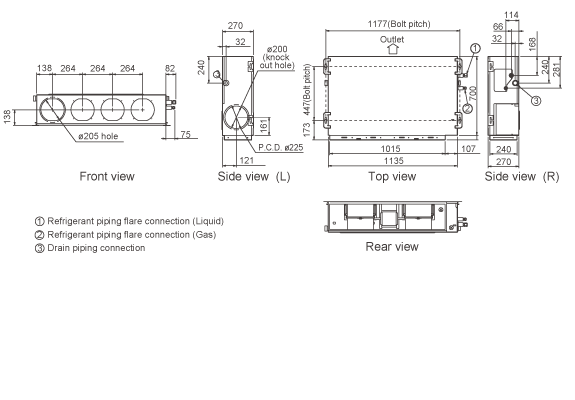

Dimensions
Indoor Unit : ARXB24GALH
