VRF Systems V-III TROPICAL Series AJH252LNTCHH

Specifications

Rated Capacity Range	28 HP
Max. Number of Connectable Indoor Units^*1	2 - 46
Connectable Capacity of Indoor Units	39.2 - 101.7 kW

Scroll

Power Source	Phase	3 phase
	Voltage	380-415(50Hz),400(60Hz) V
	Frequency	50/60 Hz
Capacity	Cooling	78.3 kW
Capacity	Heating	87.5 kW
Input Power	Cooling	19.36 kW
Input Power	Heating	18.99 kW
EER	Cooling	4.04 W/W
COP	Heating	4.61 W/W
Airflow Rate		13000 + 11100 + 11100 m³/h
Sound Pressure Level^*2	Cooling	61 dB(A)
Sound Pressure Level^*2	Heating	64 dB(A)
Max. External Static Pressure		82 Pa
Compressor Motor Output		11 x 1 + 7.5 x 1 + 7.5 x 1 kW
Heat Exchanger Fin		Blue fin
Net Dimensions Height X Width X Depth		1690 x 1240 x 765 mm 1690 x 930 x 765 mm 1690 x 930 x 765 mm
Net Weight		279 kg 255 kg 255 kg
Refrigerant	Type	R410A
Refrigerant	Charge	11.8 kg 11.7 kg 11.7 kg
Connection Pipe Diameter	Liquid	φ15.88 mm
Connection Pipe Diameter	Gas	φ34.92 mm
Max. Height Difference (Outdoor Unit: Upper/Lower)		50 / 40 m
Operation Range	Cooling	-5 to 52 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

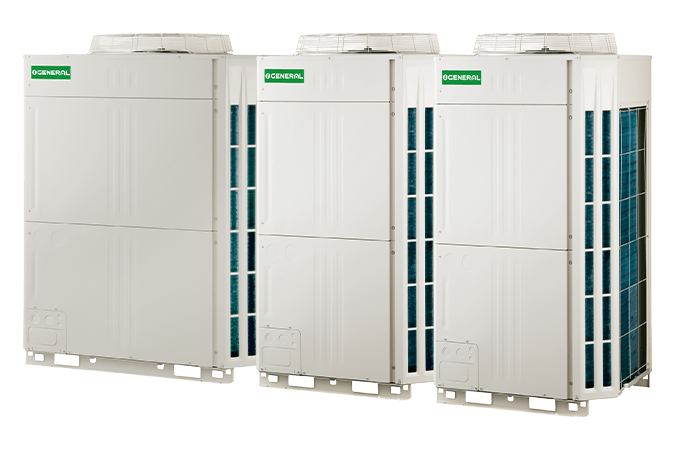

Outdoor unit
