VRF Systems V-III TROPICAL Series AJH270LNTCH

Specifications

Rated Capacity Range	30 HP
Max. Number of Connectable Indoor Units^*1	2 - 50
Connectable Capacity of Indoor Units	42.5 - 110.5 kW

Scroll

Power Source	Phase	3 phase
	Voltage	380-415(50Hz),400(60Hz) V
	Frequency	50/60 Hz
Capacity	Cooling	85.0 kW
Capacity	Heating	95.0 kW
Input Power	Cooling	23.97 kW
Input Power	Heating	24.80 kW
EER	Cooling	3.55 W/W
COP	Heating	3.83 W/W
Airflow Rate		13700 + 13000 m³/h
Sound Pressure Level^*2	Cooling	64 dB(A)
Sound Pressure Level^*2	Heating	66 dB(A)
Max. External Static Pressure		82 Pa
Compressor Motor Output		11 x 1 + 11 x 1 kW
Heat Exchanger Fin		Blue fin
Net Dimensions Height X Width X Depth		1690 x 1240 x 765 mm 1690 x 1240 x 765 mm
Net Weight		279 kg 279 kg
Refrigerant	Type	R410A
Refrigerant	Charge	11.8 kg 11.8 kg
Connection Pipe Diameter	Liquid	φ19.05 mm
Connection Pipe Diameter	Gas	φ34.92 mm
Max. Height Difference (Outdoor Unit: Upper/Lower)		50 / 40 m
Operation Range	Cooling	-5 to 52 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

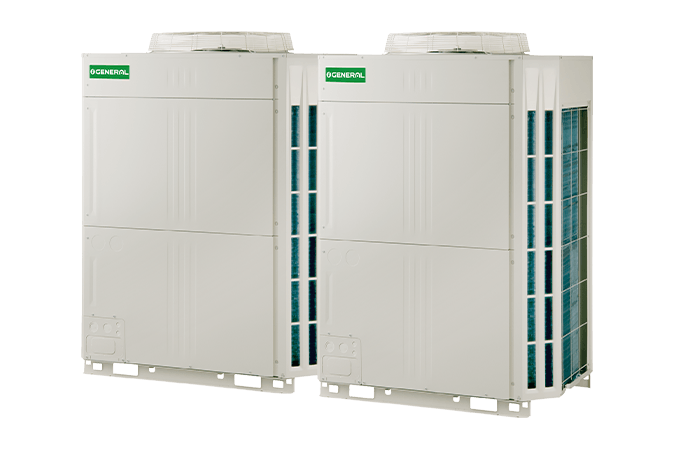

Outdoor unit
