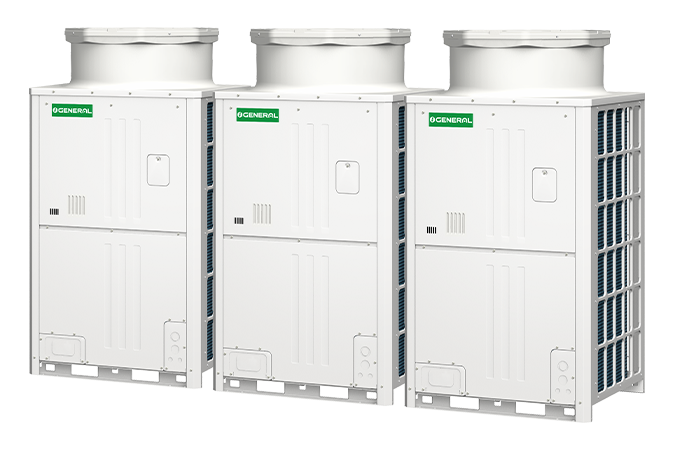

VRF Systems VC-V Series AJG216JATAHH
- Outdoor Unit :
- AJG072JATAH
- Outdoor Unit :
- AJG072JATAH
- Outdoor Unit :
- AJG072JATAH
- Download :
-
Catalogues
Features
- High ambient operation design
- Energy-saving technologies for boosting operational efficiency
- Elaborate anti-corrosion treatment
- Outstanding cooling capacity
Specifications
| Rated Capacity Range | 24 HP |
|---|---|
| Max. Number of Connectable Indoor Units*1 | 2 - 45 |
| Connectable Capacity of Indoor Units | 33.6 - 100.8 kW |
Scroll
| Power Source | Phase | 3 phase |
|---|---|---|
| Voltage | 380-415(50Hz),400(60Hz) V | |
| Frequency | 50/60 Hz | |
| Capacity | Cooling | 67.2 kW |
| Input Power | Cooling | 13.26 kW |
| EER | Cooling | 5.07 W/W |
| Airflow Rate | 10200 + 10200 + 10200 m³/h | |
| Sound Pressure Level*2 | Cooling | 60 dB(A) |
| Max. External Static Pressure | 82 Pa | |
| Compressor Motor Output | 4.7 x 1 + 4.7 x 1 + 4.7 x 1 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions Height X Width X Depth |
1740 x 930 x 765 mm
1740 x 930 x 765 mm 1740 x 930 x 765 mm |
|
| Net Weight |
209 kg
209 kg 209 kg |
|
| Refrigerant | Type | R410A |
| Charge |
9.7 kg
9.7 kg 9.7 kg |
|
| Connection Pipe Diameter | Liquid | φ15.88 mm |
| Gas | φ34.92 mm | |
| Operation Range | Cooling | 10 to 55 °CDB |
Scroll
Dimensions
Outdoor Unit : AJG072JATAH / AJG072JATAH / AJG072JATAH
