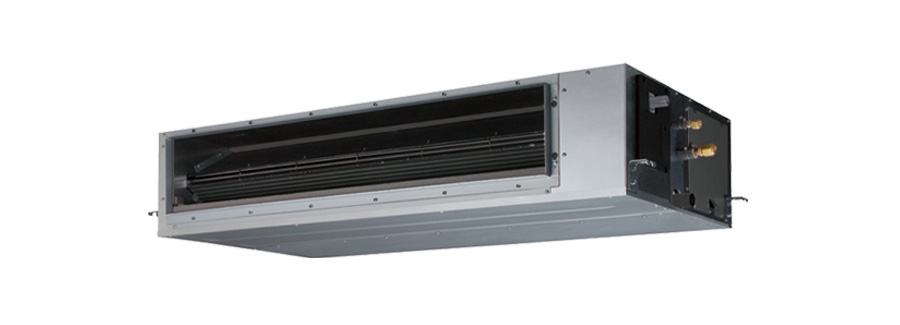

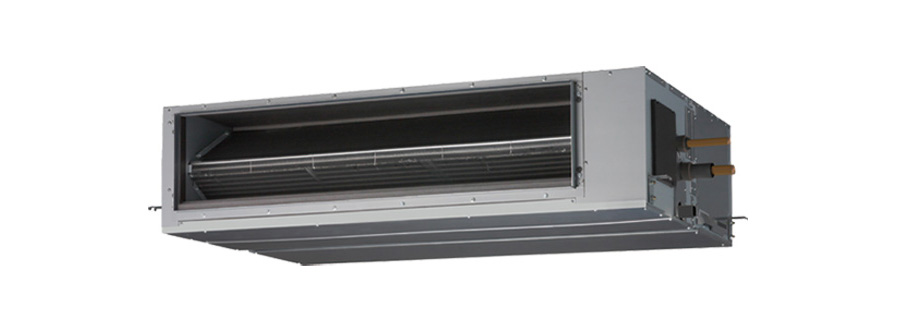

Medium Static Pressure Duct (CM Series, KM Series)
Indoor Units :
ARSG48CMTA / ARSH48KMTA
ARSG60CMTA / ARSH60KMTA
Models
| 380-415V 3-Phase | |
|---|---|
| ARSG48CMTAZ | |
| ARSG60CMTAZ | |
| ARSH48KMTAZ | |
| ARSH60KMTAZ | |

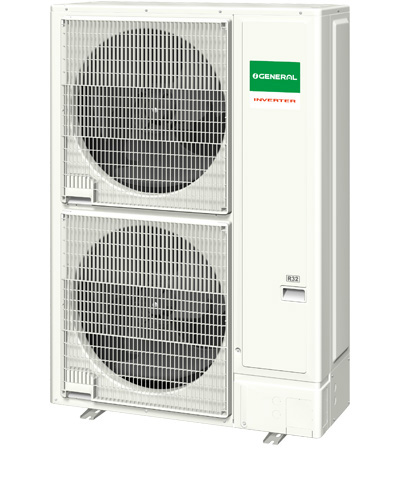

Outdoor Units :
AOSG48/60CRTA
AOSH48/60KMTA

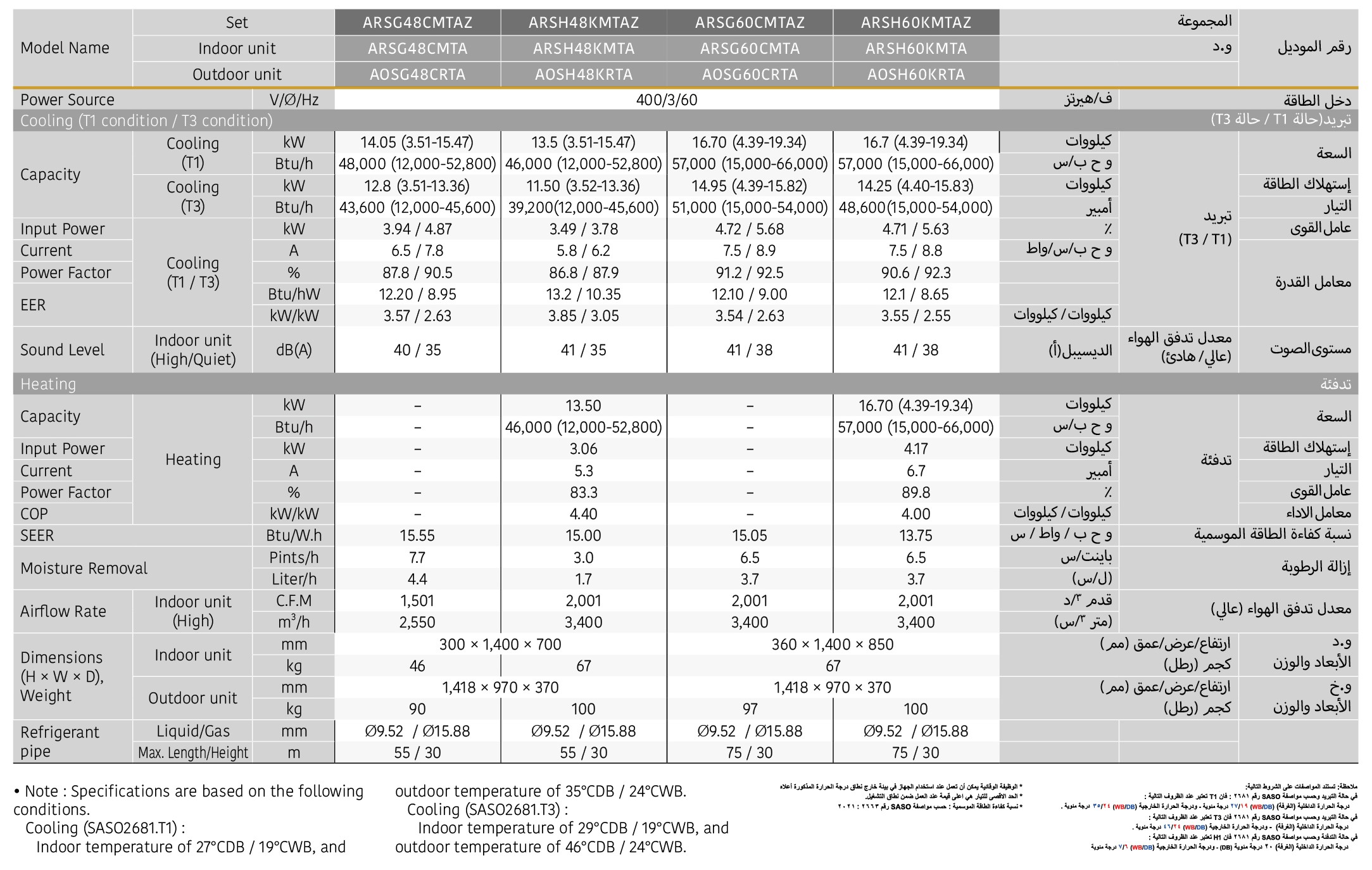

Specifications
Features
06:17
New technology design
Easy Installation & maintenance
Desert Climate up to 55˚C (with Refrigerant Cool)
NEW Item
Cooling piping system (30 / 36 / 48 / 60)
"Cooling piping system" is adopted to ensure reliability in high outside air.
PCB and electronic components
High ambient temperature compatible electric components.
Added silicon coating on all PCB circuits for anti-corrosion.

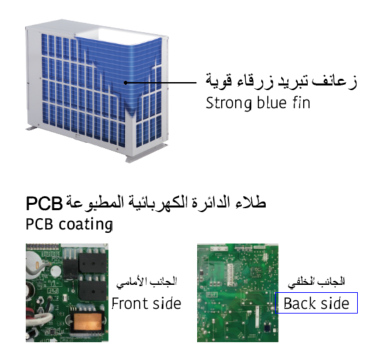

Corrosion resistance
Blue fin heat-exchanger is used for the outdoor units, which enables to enhance the corrosion-resistance performance. New models are added silicon coating on all PCB circuits for anti-corrosion.
Easy adjustment & Wide range of static pressures
Static Pressure can be adjusted from the remote controller.
