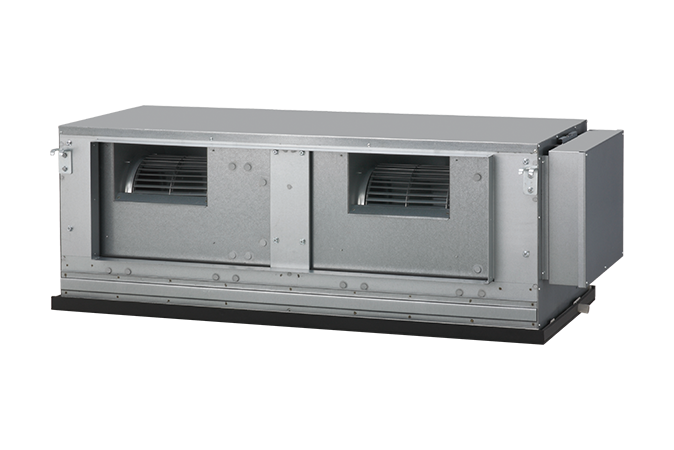

High Static Pressure Duct ARXC096GTEH
Features
- Static pressure selection
- Low noise
- Low energy consumption by high efficiency DC fan motor
- Easy installation (Compact size & Lightweight)
- Optional parts
Capacity
28.0 kW
31.5 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 28.0 kW | |
| Heating | 31.5 kW | ||
| Input Power | 838 W | ||
| Airflow Rate | Cooling | High | 4850 m³/h |
| Middle | 4250 m³/h | ||
| Low | 3600 m³/h | ||
| Heating | High | 4850 m³/h | |
| Middle | 4250 m³/h | ||
| Low | 3600 m³/h | ||
| Static Pressure Range | 0 to 300 Pa | ||
| Standard Static Pressure | 150 Pa | ||
| Sound Pressure Level*2 | Cooling | High | 48 dB(A) |
| Middle | 45 dB(A) | ||
| Low | 42 dB(A) | ||
| Heating | High | 48 dB(A) | |
| Middle | 45 dB(A) | ||
| Low | 42 dB(A) | ||
| Net Dimensions | Height | 550 mm | |
| Width | 1587 mm | ||
| Depth | 700 mm | ||
| Net Weight | 105.0 kg | ||
| Connection Pipe Diameter | Liquid (Brazing) | φ9.52 mm | |
| Gas (Brazing) | φ22.22 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
Scroll
Dimensions
Indoor Unit : ARXC096GTEH
