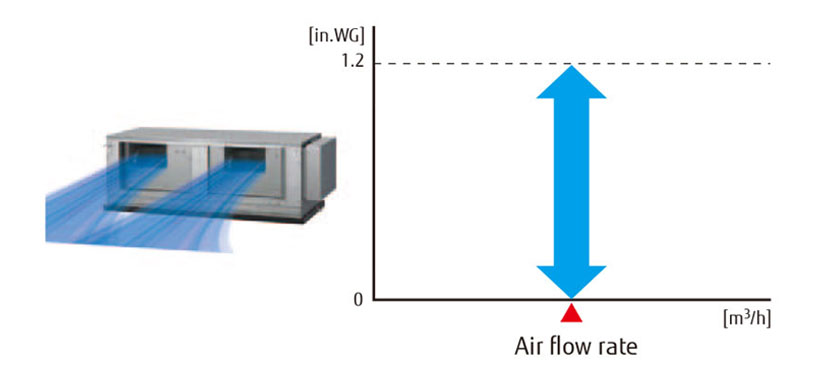

Static pressure selection

By using DC fan motor, it is possible to change static pressure range from 0 to 200Pa (ARXC36) / 300Pa (ARXC72 / 90 / 96).

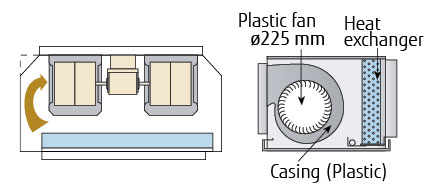

Low noise

Models : ARXC36

Cutting off the corners of the conventional indoor unit front panel and fan casing, has enabled less turbulent air flow. Low noise is realized by adopting a plastic case and a plastic fan.

ARXC36GBTH : Plastic fan [42dB(A)]

* Model : Material (At 100Pa : Actual noise measurement value)

(ARGC36 type)

(ARGC72 / 90 / 96 type)

Easy installation (Compact size & Lightweight)

A compact size and lightweight indoor unit has been developed by reducing the basic chassis and the overall material weight.

Optional parts

Long-Life Filter :

UTD-LF60KA (For ARXC36GBTH)

IR Receiver Unit :

UTB-YWC

Remote Sensor Unit :

UTY-XSZX

*

ARXC60/ARXC72/ARXC90 cannot be connected to J-IVS series
