Heat Pump Modular Type V-III Series AJH396LALBHH

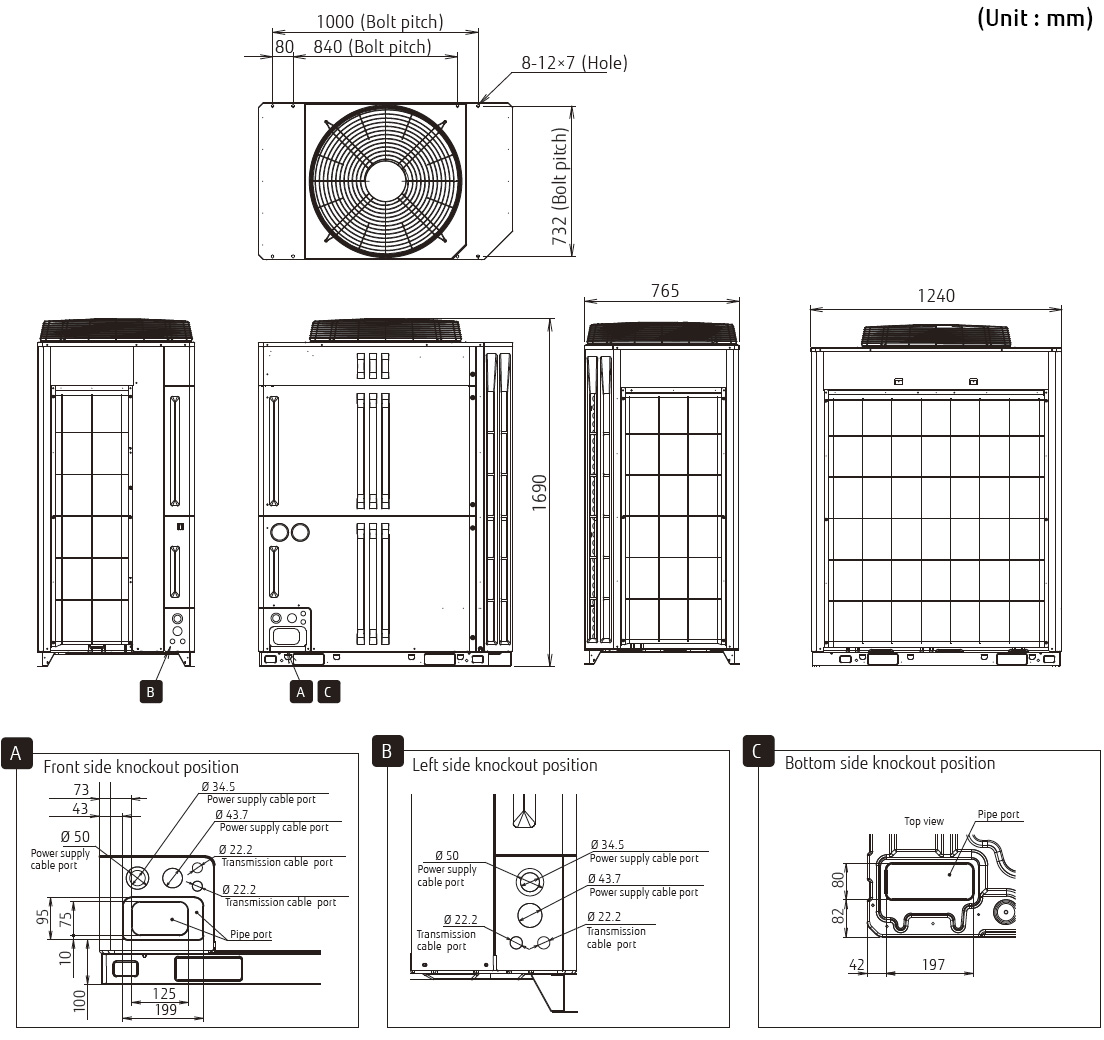

Outdoor unit

Outdoor Unit :
Outdoor Unit :
Outdoor Unit :
Download :


  • Excellent energy saving
  • Great design flexibility for placement in any building
  • Easy installation and maintenance
  • Outstanding efficiency in real-world operating conditions
  • Energy-saving technologies for boosting operational efficiency


Cooling  125.0 kW
Heating  140.0 kW


Rated Capacity Range 44
Max. Number of Connectable Indoor Units*1 64
Connectable Capacity of Indoor Units 62.5 - 187.5 kW
Power Source Phase 3 phase 4 wire
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 125.0 kW
Heating 140.0 kW
Input Power Cooling 34.93 kW
Heating 35.97 kW
EER Cooling 3.58 W/W
COP Heating 3.89 W/W
Airflow Rate 13,700+13,000×2 m³/h
Sound Pressure Level*2 Cooling 66 dB(A)
Heating 68 dB(A)
Sound Power Level Cooling 87 dB(A)
Heating 90 dB(A)
Max. External Static Pressure 82 Pa
Compressor Motor Output 11.0×3 kW
Heat Exchanger Fin Blue fin
Net Dimensions Height 1,690 mm
Width 1,240×3 mm
Depth 765 mm
Net Weight 275×3 kg
Refrigerant Type R410A
Global Warming Potential 2,088
Charge 11.8×3 kg
Connection Pipe Diameter Liquid 19.05 mm
Gas 41.27 mm
Operation Range Cooling -5 to 46 °CDB
Heating -20 to 21 °CDB
Specifications are subject to the following conditions:
Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
Pipe length:
7.5 m Height difference between outdoor unit and indoor unit: 0 m
When cooling operation will be conducted at outdoor air temperature below -5°C,
the outdoor unit must be installed in a position that is higher than or equal to those of indoor units.
Minimum connectable indoor unit number is 2.
The noise value is the value when measured in an anechoic room. When measured in the actual installed state,
surrounding noise and reflections are received and the measured value is usually larger than the indicated value.


Outdoor Unit : AJH144LALBH / AJH126LALBH / AJH126LALBH
