FGLair™ app SET UP - STEP4: Pairing External type - Manual connection

1

Tap [＋] to add a new air conditioner.

Select the adapter type of your air conditioner.

Read the note and tap [Next].

Select a [Manual connection].

Read the note and tap [Next].

iOS flow

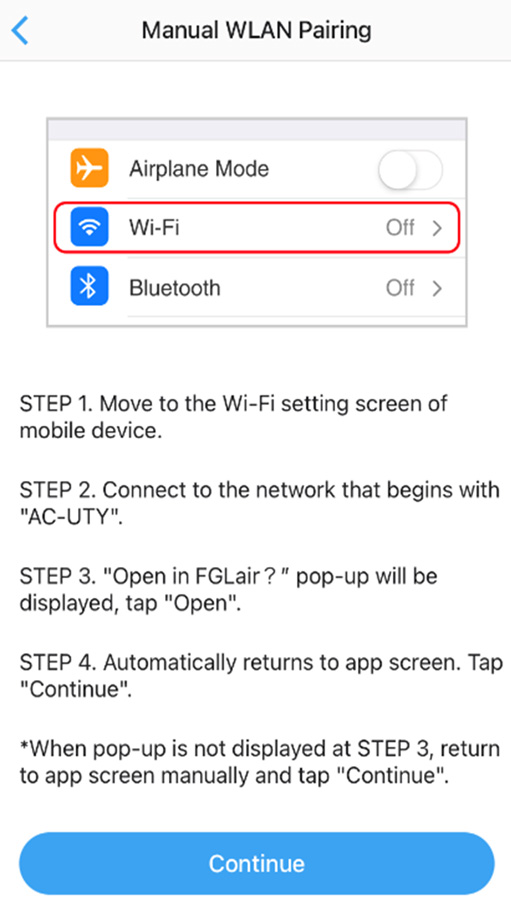

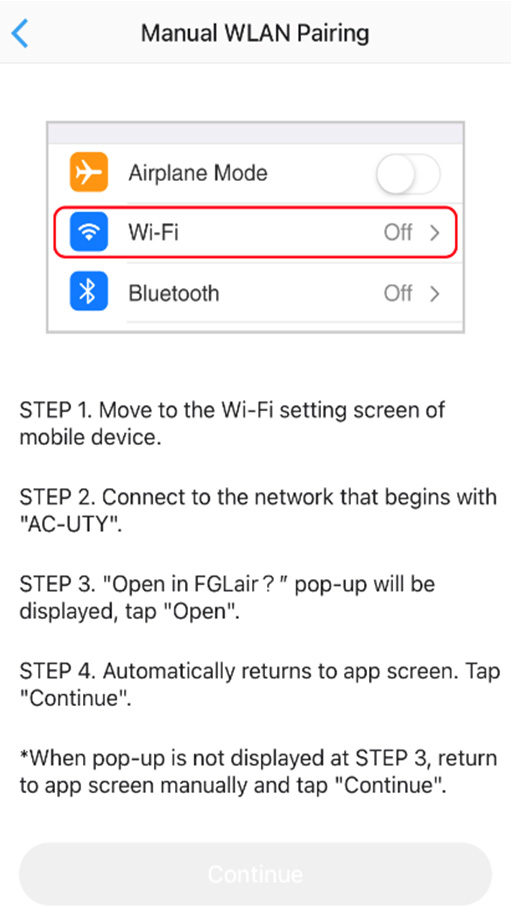

Open [Setting] -> Wi-Fi by following the instructions on the mobile app.

Select the SSID of the air conditioner you are connecting to.

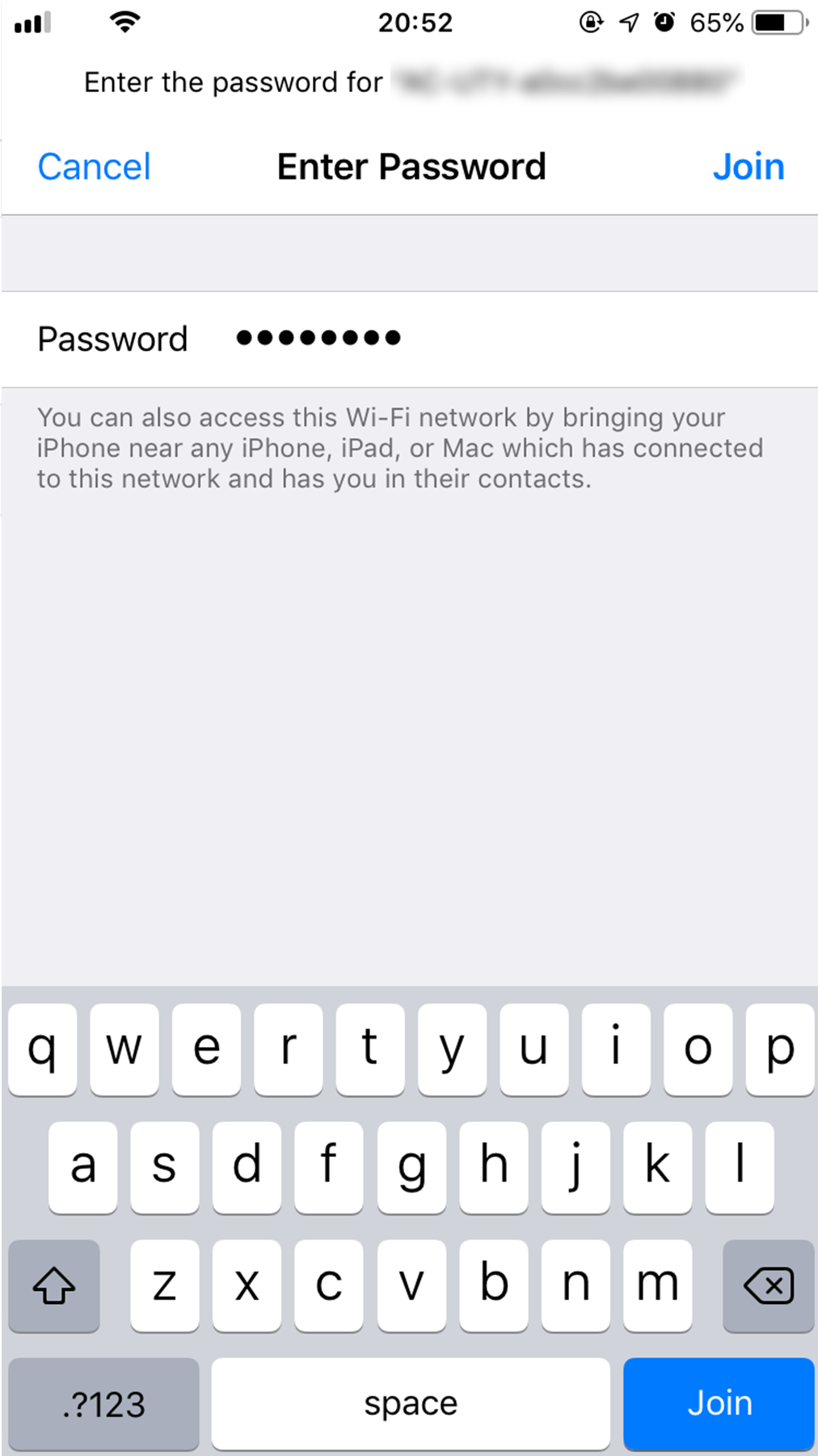

Enter the PIN code written on the WLAN adapter then press [Join].

Depending on the type of WLAN adapter, you may not need to enter a password.

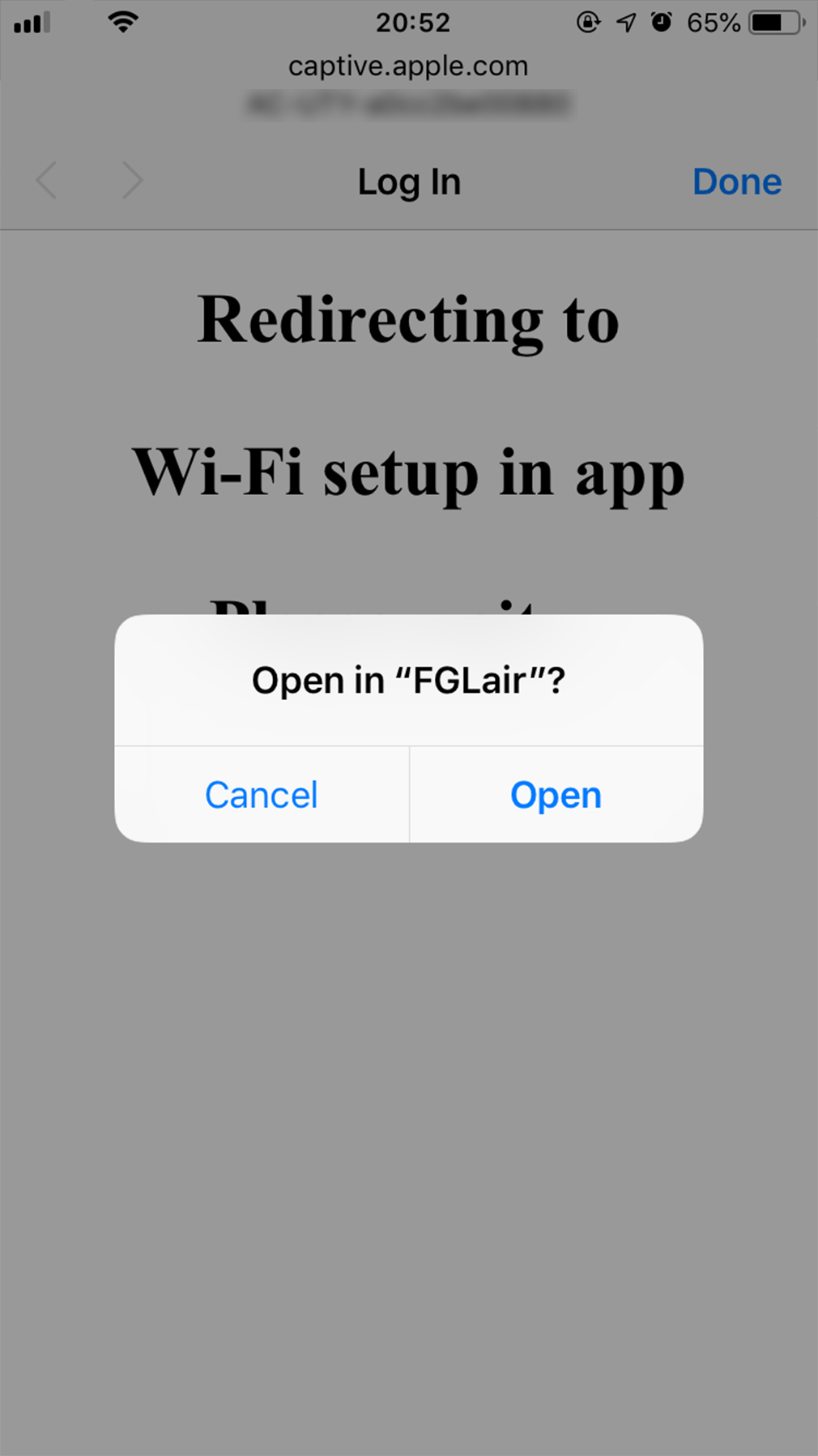

"Open in FGLair?" pop-up will be displayed, tap [Open].

When pop-up is not displayed, return to app screen manually.

Tap [Continue].

Android flow

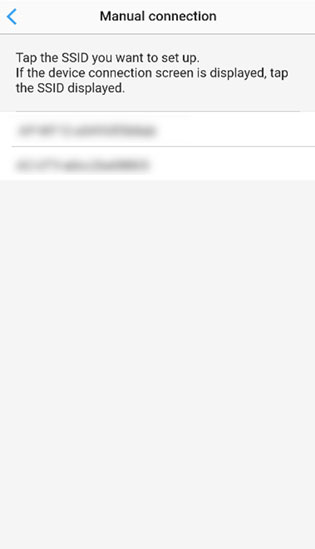

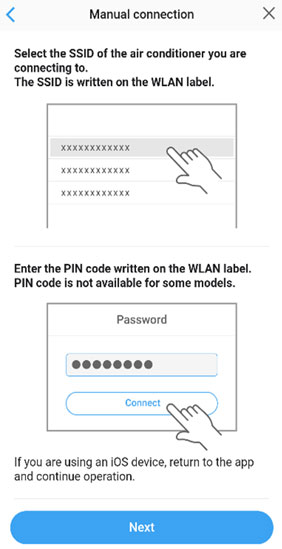

Select the SSID of the WLAN adapter you are connecting to.

For iOS, it is necessary to select the SSID of the adapter on the device's Wi-Fi setting screen.

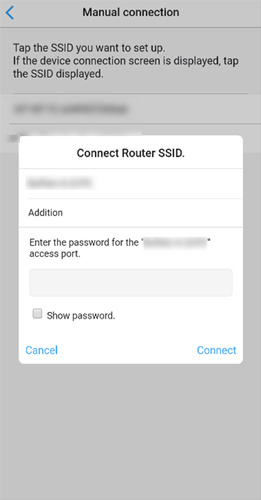

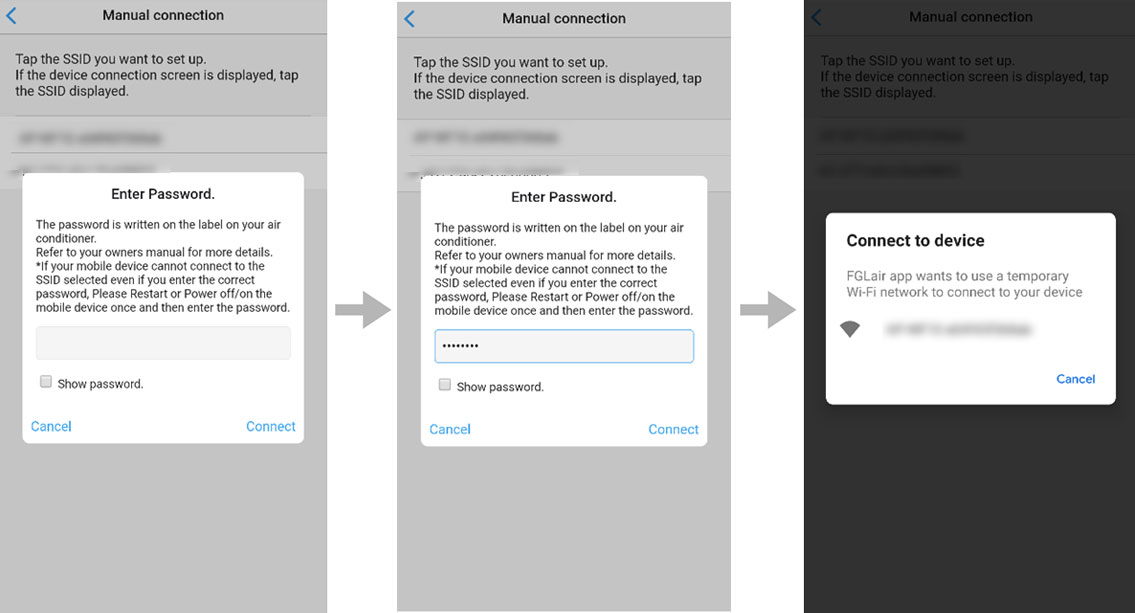

Enter the PIN code written on the WLAN adapter then press [Connect].

Depending on the type of WLAN adapter, you may not need to enter a PIN code.

If the device connection screen is displayed, tap the SSID displayed.

Read the note and tap [Next].

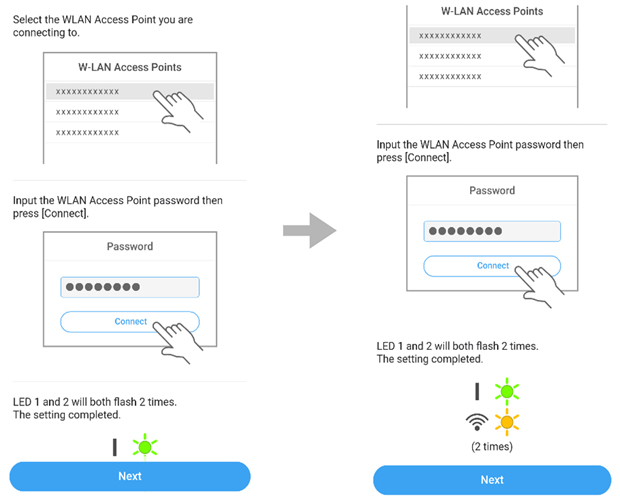

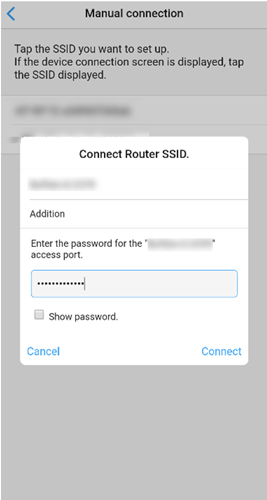

Enter the WLAN Access Point password then press [Connect].

LED 1 and 2 will both flash 2 times.

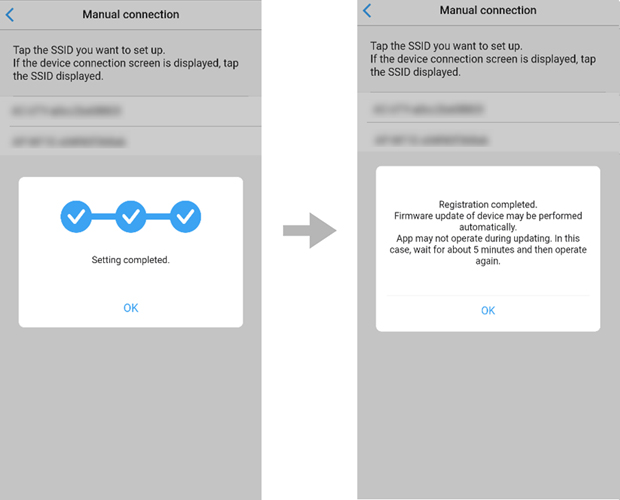

The setting is completed.

*: The time to complete the setting is different depending on the communication environment.
*: It takes max 15 minutes to complete the setting.

*: "FGLair" is a trademark of FUJITSU GENERAL LIMITED.
*: The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
*: Screens, figures and movies are only for explanation.
