VRF Systems Indoor Unit Lineup Floor Slim Concealed Floor

230 V single phase
ARXD04GALH
ARXD007GLEH
ARXD009GLEH
ARXD012GLEH
ARXD014GLEH
ARXD018GLEH
ARXD024GLEH

Features

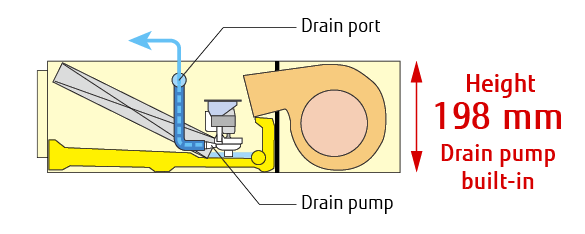

Slim design

Slim design img

With a slim indoor design, this indoor can be installed in narrow ceiling spaces.

Selectable with a wide range of static pressure

Selectable with a wide range of static pressure

*24 model is 0 to 50Pa

By using DC fan motor, it is possible to change of static pressure range 0 to 90Pa. The change of static pressure range is possible by remote controller.

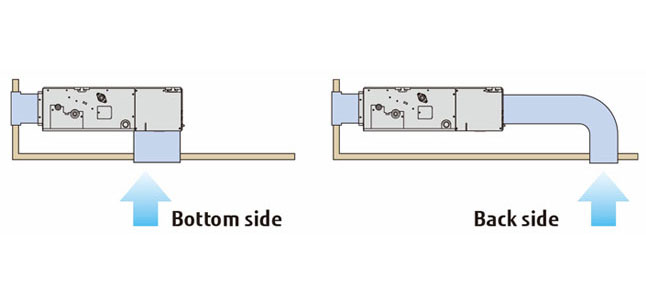

Air-intake

Air-intake img

Air intake direction can be selected to match the installation site.

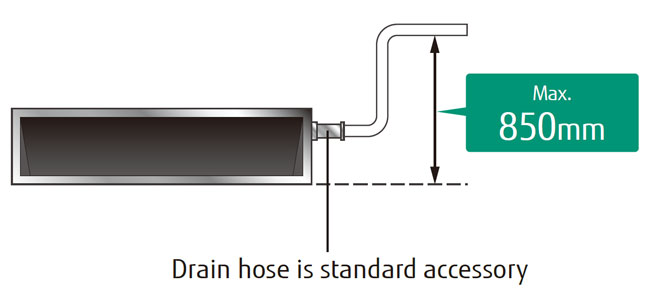

High lift drain pump

High lift drain pump img

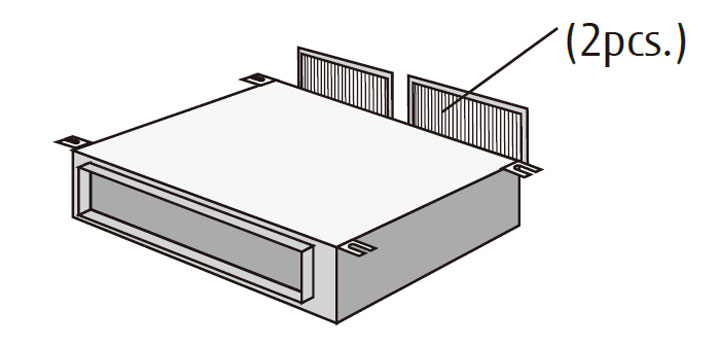

Filter (Accessory)

Filter (Accessory) img

ARXD07 / 09 / 12 / 14 / 18

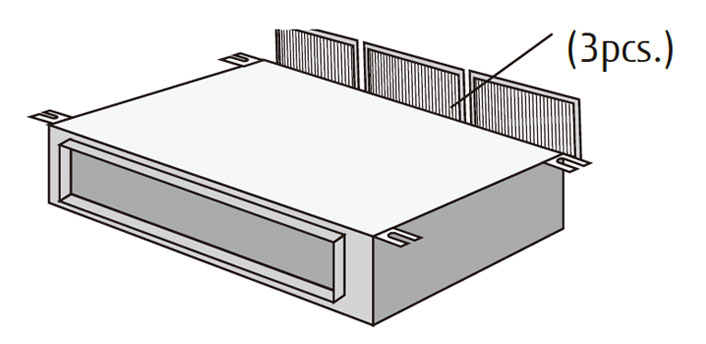

Filter (Accessory) img

ARXD24

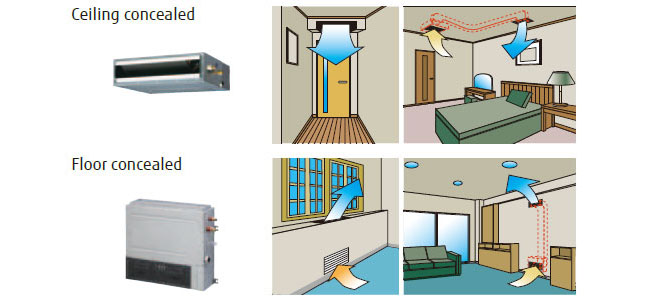

Flexible installation

Flexible installation img

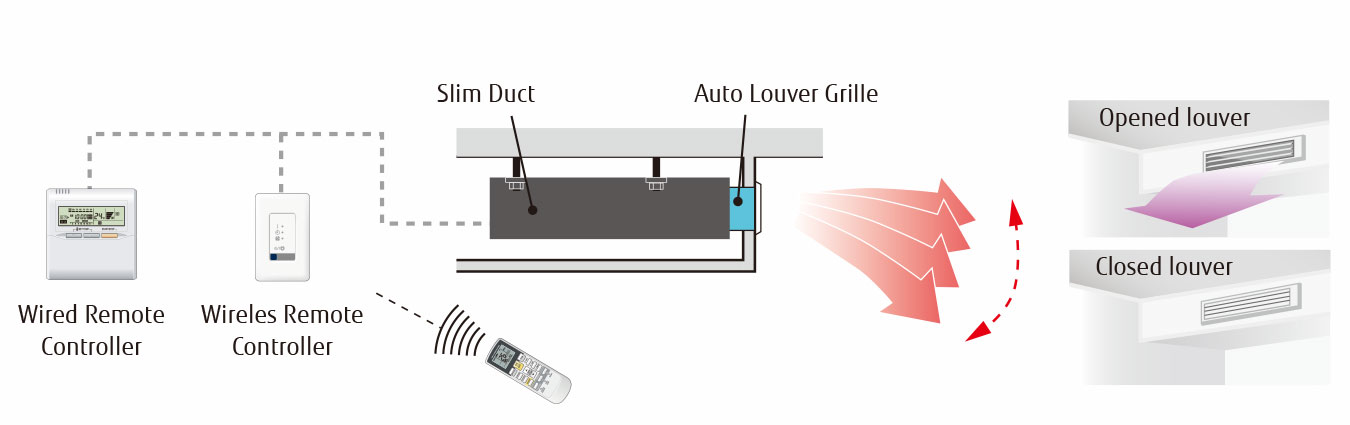

Auto Louver Grille Kit (Option)

Auto Louver Grille Kit (Option) img

Simple flat Auto Louver will provide comfort airflow and harmonize with luxury interior.

*
ARXD04GALH cannot be connected to J-IVS/J-IVL/VC-V series
