Medium Static Pressure Duct (CM Series)
Indoor Units :
ARGH18/24CMTA-Q
ARGH30/36CMTA-Q
ARGH48/60CMTA-Q
Models
| 220-240V Single-Phase | |
|---|---|
| ARGH18CMTA-QZ | |
| ARGH24CMTA-QZ | |
| ARGH30CMTA-QZ | |
| ARGH36CMTA-QZ | |
| 380-415V 3-Phase | |
|---|---|
| ARGH48CMTA-QZ | |
| ARGH60CMTA-QZ | |
Outdoor Units :
AOGH18CBTA-Q
AOGH24CBTA-Q
AOGH30CBTA-Q
AOGH36CBTA-Q
AOGH48CRTA-Q
AOGH60CRTA-Q

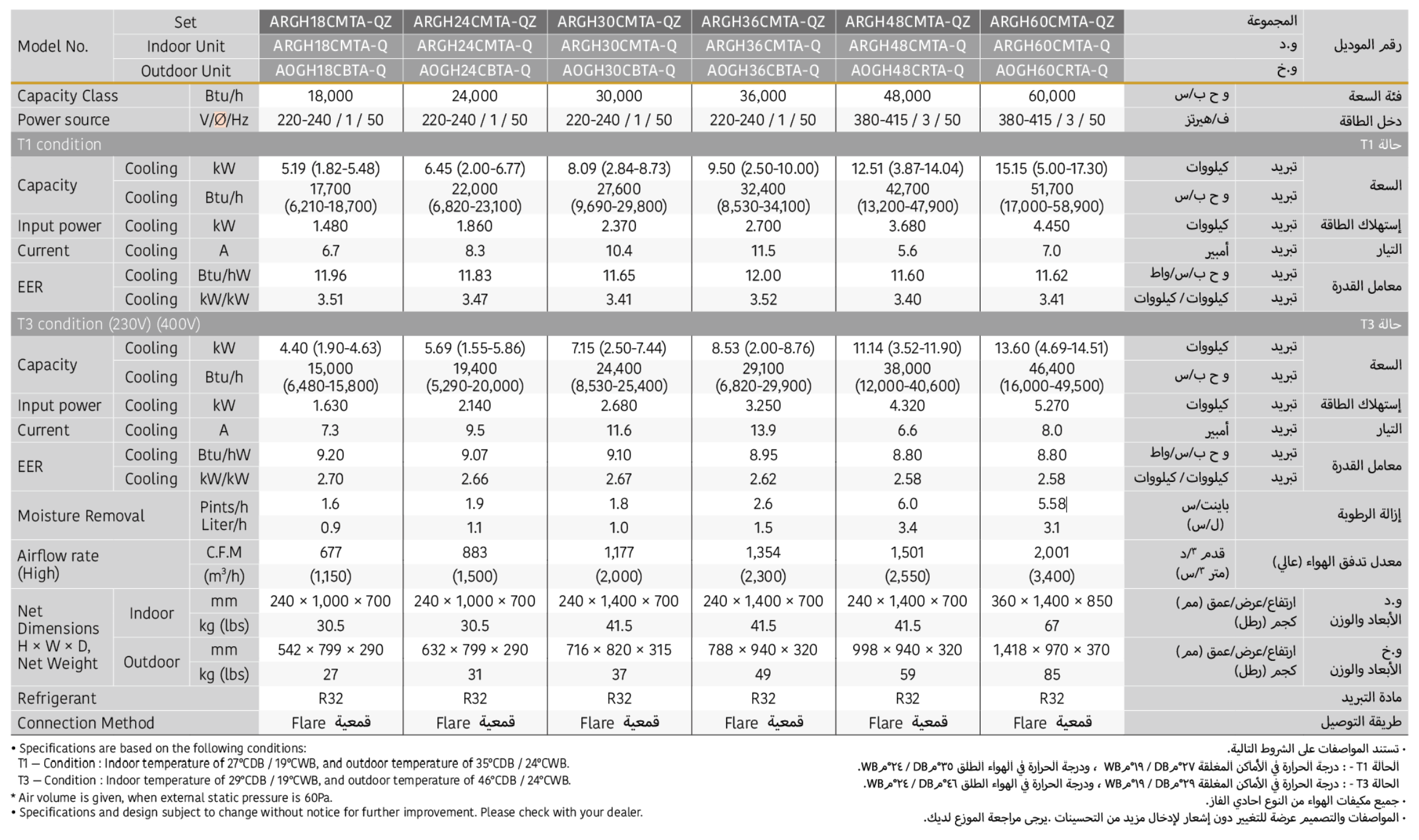

Specifications
Features

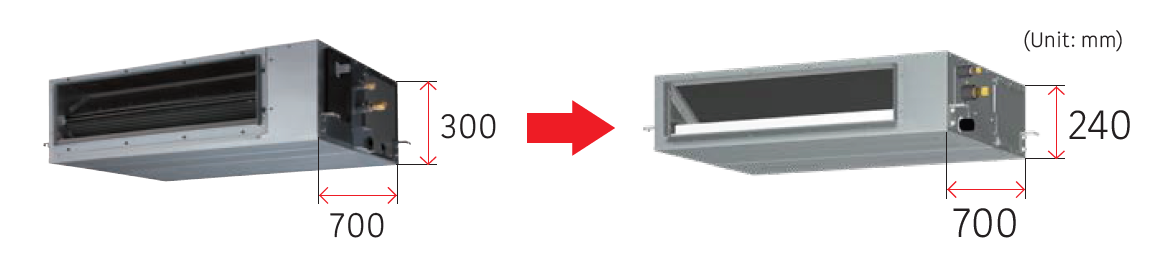

Small and Compact
The indoor unit is only 240mm tall, allowing installation even in narrow spaces under the ceiling.
It flexibly adapts to various installation environments.
Desert Climate up to 55˚C
Heat Rejection Technology
Cooling piping system
"Cooling piping system" is adopted to ensure reliability in high outside air.
Designed for Desert Climate
PCB and electronic components
High ambient temperature compatible electric components.
Added silicon coating on all PCB circuits for anti-corrosion.
Easy Adjustment for Static Pressure
Static Pressure can be adjusted from the remote controller.
