Multi-split Systems (Air Conditioners) 2-, 3-, and 4-unit Multi-split AOHG14LAC2
Features
- Space-saving installation
- A variety of models to choose from
- Flexible installation
Capacity
4.0 kW
4.4 kW
Specifications
| Power Source | Phase | Single-phase |
|---|---|---|
| Voltage | ~ 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 4.0 kW(1.4 - 4.4 kW) | Heating | 4.4 kW(1.1 - 5.4 kW) |
| EER | Cooling | 3.67 W |
| COP | Heating | 4.27 W |
| Sound Pressure Level*2 (High) | Cooling | 47 dB(A) |
| Heating | 49 dB(A) | |
| Sound Power Level (High) | Cooling | 61 dB(A) |
| Heating | 63 dB(A) | |
| Net Dimensions | Height | 540 mm |
| Width | 790 mm | |
| Depth | 290 mm | |
| Net Weight | 37 kg | |
| 82 lbs | ||
| Connection Pipe Diameter | Liquid | Φ6.35×2 mm |
| Gas | Φ9.52×2 mm | |
| Max. Pipe Length | Total | 30 m |
| Each | 20 m | |
| Max. Height Difference | Between Outdoor Unit and Each Indoor Unit | 15 m |
| Between Indoor Units | 10 m | |
| Operation Range | Cooling | 10 to 46 °C DB |
| Heating | -15 to 24 °C DB | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2,088 | |
| Charge | 1,250 g | |
Scroll

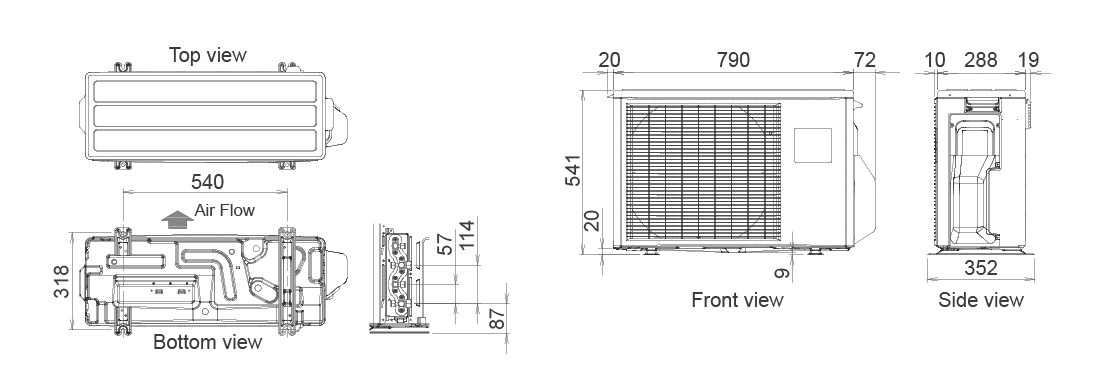

Dimensions

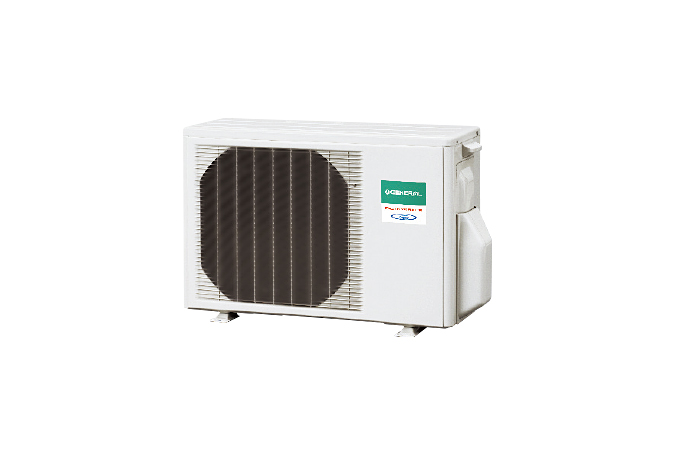

Outdoor Unit : AOHG14LAC2
