Multi-split Systems R32 Simultaneous Multi-split Type


230V 1Phase
Cooling9.5 kW
Heating10.8 kW
Cooling12.1 kW
Heating13.5 kW
Cooling13.4 kW
Heating15.5 kW
400V 3 phase
Cooling9.5 kW
Heating10.8 kW
Cooling12.1 kW
Heating13.5 kW
Cooling13.4 kW
Heating15.5 kW


Meets a variety of installation needs from office to commercial space, with up to 3 indoor units in the same room connected to an outdoor unit.

Select indoor units according to floor layout and heat load estimated by the number of people working in the room and the direction and intensity of sunlight coming into the room.

Ideal airflow distribution can be achieved for optimum comfort.

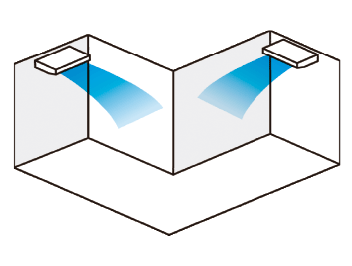

Installation that considers the floor layout

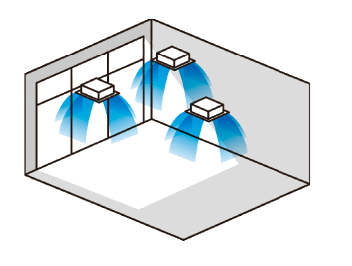

Installation that considers the direction and intensity of sunlight coming into the room

Design flexibility

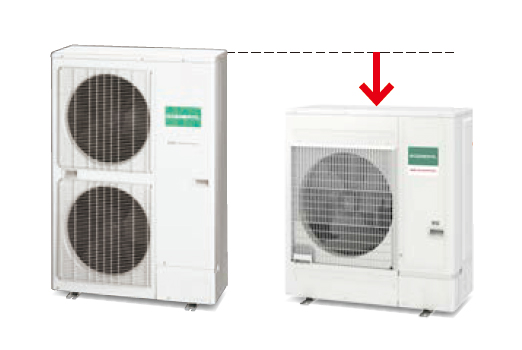

Slim & Compact design

This model is much more compact than a conventional outdoor unit. Significant reduced height of the product supports installations in narrow spaces.

Height -22.7%*

* :

Flexible installation

Pipe length of up to 50 m and a height difference of up to 30 m can be accommodated. Multi-split systems can be installed in large residences and multi-storied buildings.

1. Max. pipe length (each unit):
50 m
2. Max. height difference:
30 m
