AIRSTAGE VRF Systems J-VL Series

VRF J-VL Series

Features

Common features

Outdoor unit lineup

  400 V 3 phase
8 HP AJY072KELAH
10 HP AJY090KELAH
12 HP AJY108KELAH
14 HP AJY126KELAH
16 HP AJY144KELAH
18 HP AJY162KELAH

Features

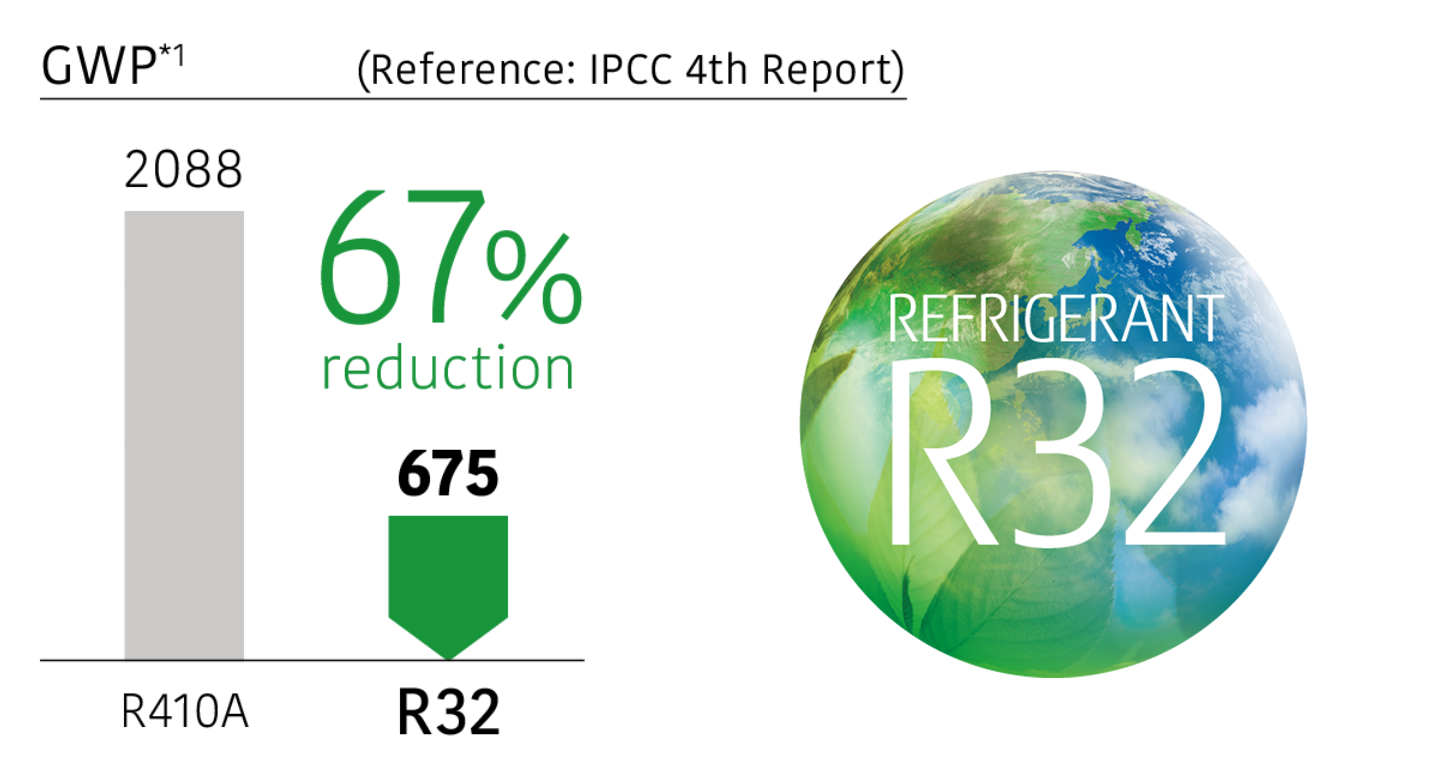

R32 Refrigerant with Reduced Global Warming Potential

  • ・High environmental properties
  • ・High performance
  • ・Economically efficient
*1
GWP (Global Warming Potential):
a measurement that indicates how much other greenhouse gases are capable of warming the Earth based on carbon dioxide This is the integrated value of radiant energy given to the Earth (i.e., the estimated impact on global warming) expressed as a ratio to CO2.

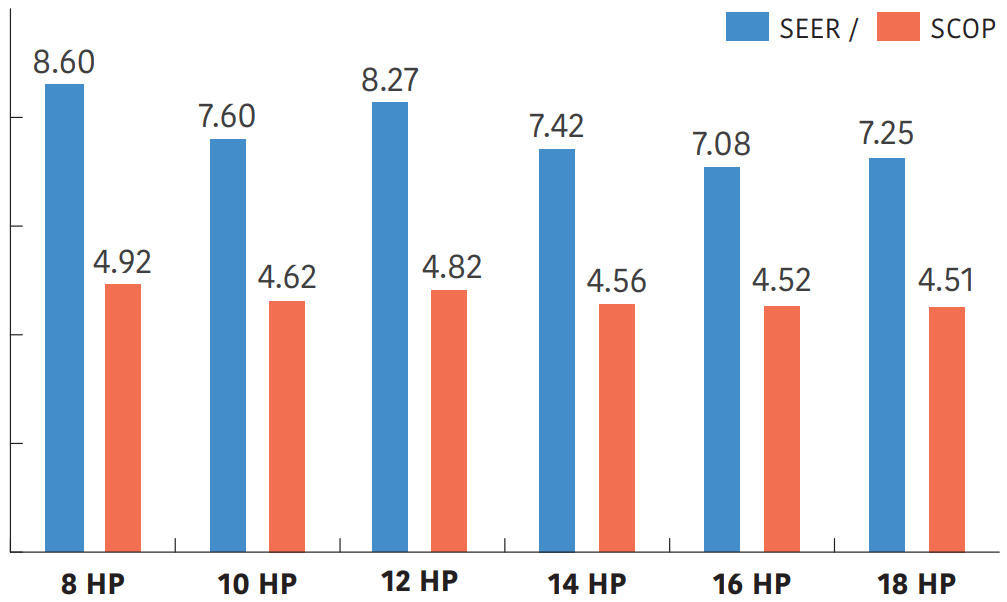

High Energy Saving

J-VL provides environmentally conscious, high-efficiency operation while ensuring comfort.

High installation Flexibility

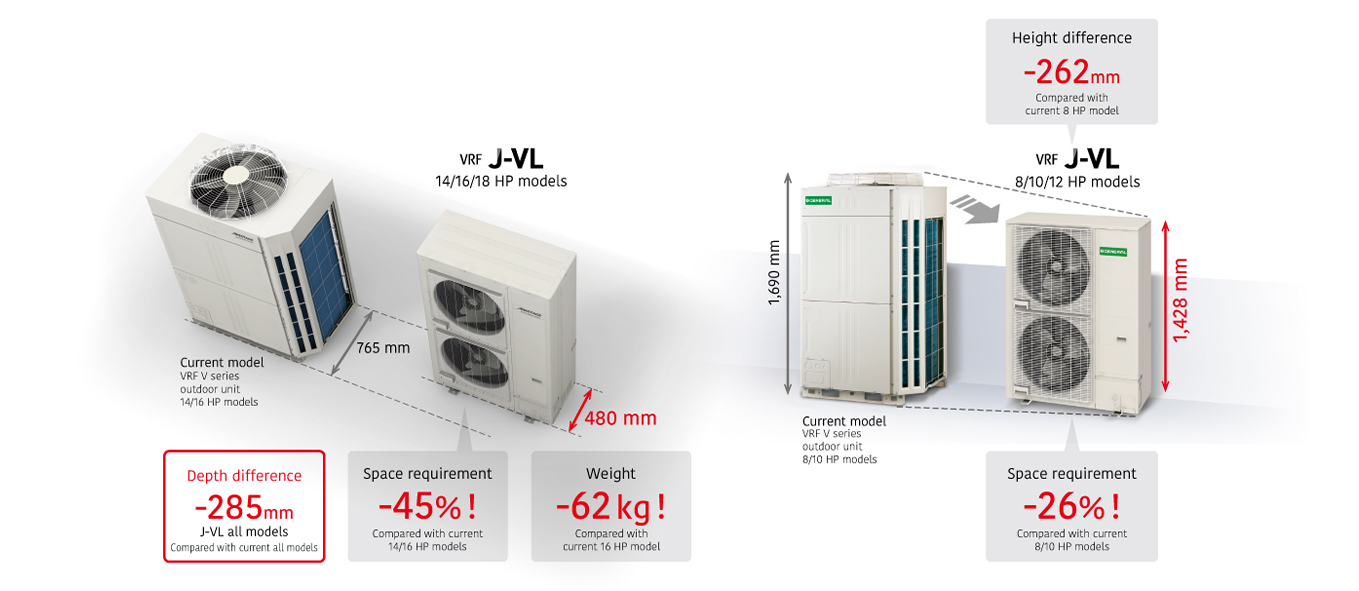

Slim design yet large capacity

Slim and space-saving design that can be installed even in narrow spaces, yet offers a large capacity of up to 18HP. Multiple units can be installed flexibly, allowing for high installation freedom.

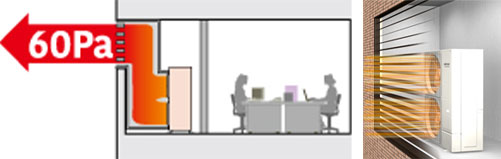

Supports concealed installation

Even if the outdoor unit is installed in a small space to hide it, the grille and duct airflow path required for exhaust air can be installed up to a static pressure value of 60 Pa. (40Pa for 8/10/12HP)

*
Capacities slightly decrease relative to the rated values during high static pressure operations.

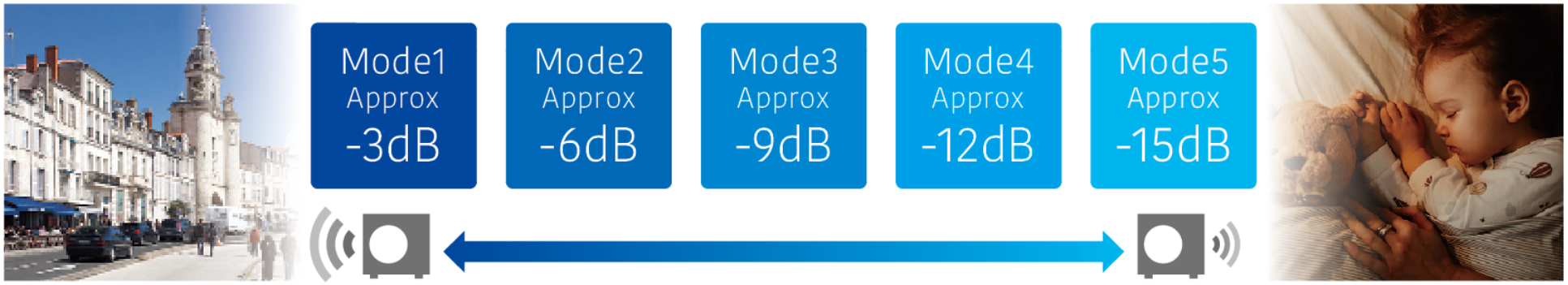

Environmentally conscious with low-noise mode

5-steps low-noise modes are available. This allows for detailed noise control in various external environments.

*
When using this function, cooling and heating performance may decrease.
The noise reduction value in low-noise mode varies depending on the model.
5-steps low noise mode
