Multi-split Systems (Air Conditioners) 2-, 3-, and 4-unit Multi-split AOHG24LAT3
Features
- Space-saving installation
- A variety of models to choose from
- Flexible installation
Capacity
6.8 kW
8.0 kW
Specifications
| Power Source | Phase | Single-phase |
|---|---|---|
| Voltage | ~ 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 6.8 kW(1.8 - 8.5 kW) | Heating | 8.0 kW(2.0 - 8.8 kW) |
| EER | Cooling | 3.51 W |
| COP | Heating | 4 W |
| Sound Pressure Level*2 (High) | Cooling | 48 dB(A) |
| Heating | 49 dB(A) | |
| Sound Power Level (High) | Cooling | 68 dB(A) |
| Heating | 70 dB(A) | |
| Net Dimensions | Height | 700 mm |
| Width | 900 mm | |
| Depth | 330 mm | |
| Net Weight | 55 kg | |
| 121 lbs | ||
| Connection Pipe Diameter | Liquid | Φ6.35×3 mm |
| Gas |
Φ9.52×2, Φ12.7 mm
*(Φ9.52×3) mm |
|
| Max. Pipe Length | Total | 50 m |
| Each | 25 m | |
| Max. Height Difference | Between Outdoor Unit and Each Indoor Unit | 15 m |
| Between Indoor Units | 10 m | |
| Operation Range | Cooling | -10 to 46 °C DB |
| Heating | -15 to 24 °C DB | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2,088 | |
| Charge | 2,200 g | |
Scroll
- *
- Connect to connection valve by the adapter.
Dimensions

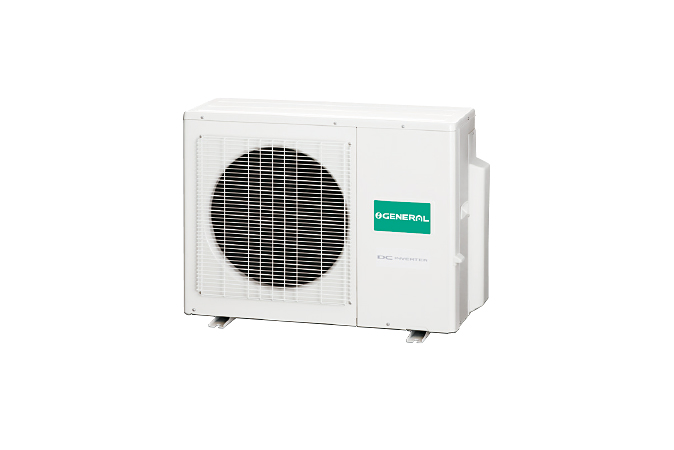

Outdoor Unit : AOHG24LAT3
