Branch Box : 3 branches type UTP-PY03A
Specifications
| Connectable Indoor Unit | 1 to 3 | |
|---|---|---|
| Power Source | 230 V | |
| 1 Φ | ||
| 50 Hz | ||
| Available Voltage Range | 198 - 264 V | |
| Power Consumption | 10 W | |
| Running Current | 0.05 A | |
| Net Dimensions | Height | 195 mm |
| Width | 433 mm | |
| Depth | 370 mm | |
| Net Weight | 9 kg | |
| 9 lbs | ||
| Liquid | Connection Pipe Diameter | Main: 9.52×1 mm Branch: 6.35×3 mm |
| Gas | Main: 15.88×1 mm Branch: 12.7×3 mm |
|
| Method | Flare | |
Scroll
- *
- Specifications are subject to the following conditions:
- Power source of specifications: 230V.

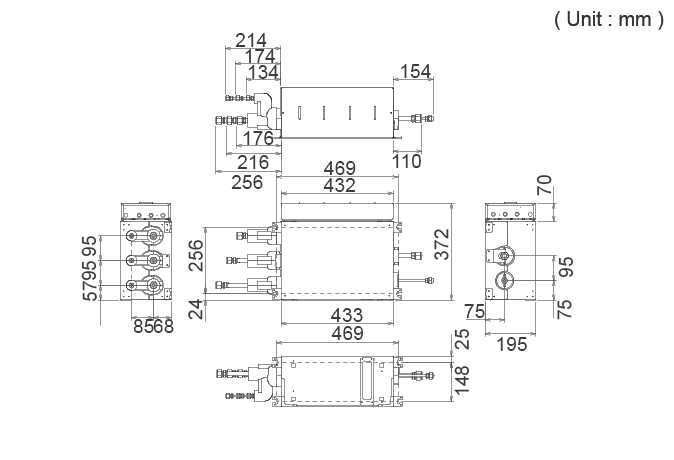

Dimensions
Outdoor Unit : UTP-PY03A
