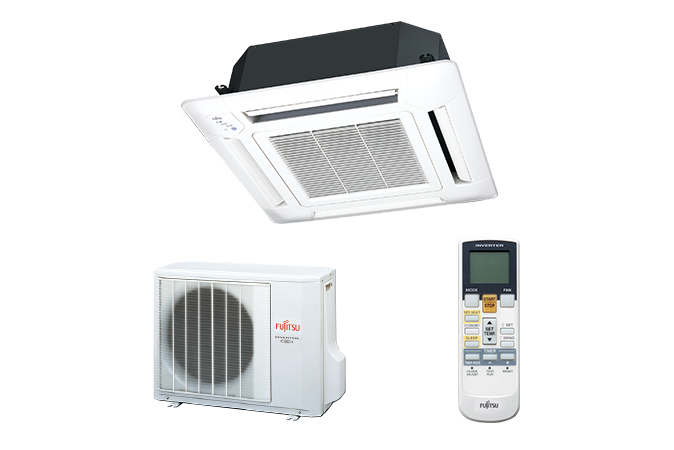

Compact Cassette 4-way Flow (Compact & Comfort) AUYG24LVLA

Indoor Unit :: AUYG24LVLA
Outdoor Unit :: AOYG24LALA

Download :: Catalogue

Features

2-stage turbo fan
Quieter operation
Improved airflow distribution
Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating.

10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied.

Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature.

Vertical swing louver: The louver automatically swings up and down.

Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature.

Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.

Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep.

Filter sign: Indicates the filter cleaning period by blinking.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment.

Set temperature auto return: The setting temperature automatically returns to the previously set temperature.

Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part.

Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit.

Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation.

Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week.

External ON/OFF input Special Cooling: Special Cooling

Capacity

6.8 kW

8.0 kW

Find a Distributor In Your Country

Specifications
Dimensions
Optional Parts

Specifications

Power Source	Phase		Single-phase
	Voltage		230 V
	Frequency		50 Hz
Capacity	Cooling		6.8 kW(0.9 - 8.0) kW
Capacity	Heating		8.0 kW (0.9 - 9.1) kW
Input Power	Cooling		2.21 kW
Input Power	Heating		2.26 kW
EER	Cooling		3.08 W/W
COP	Heating		3.54 W/W
Pdesign	Cooling		6.8 kW
Pdesign	Heating (-10°C)		6.0 kW
SEER	Cooling		5.60 W/W
SCOP	Heating (Average)		3.90 W/W
Energy Efficiency Class	Cooling		A++
Energy Efficiency Class	Heating		A+
Max. Operating Current	Cooling		12.0 A
Max. Operating Current	Heating		13.5 A
Annual Energy Consumption	Cooling		425 kWh/a
Annual Energy Consumption	Heating		2151 kWh/a
Moisture Removal			2.7 I/h
Sound Pressure Level^*2	Indoor (Cooling)	High	49 dB(A)
		Middle	44 dB(A)
		Low	36 dB(A)
		Quiet	30 dB(A)
	Indoor (Heating)	High	49 dB(A)
		Middle	45 dB(A)
		Low	40 dB(A)
		Quiet	33 dB(A)
Sound Pressure Level^*2	Outdoor (Cooling)	High	52 dB(A)
Sound Pressure Level^*2	Outdoor (Heating)	High	53 dB(A)
Sound Power Level	Indoor (Cooling)	High	59 dB(A)
	Indoor (Heating)	High	61 dB(A)
	Outdoor (Cooling)	High	67 dB(A)
	Outdoor (Heating)	High	70 dB(A)
Airflow Rate	Indoor	High	930 m3/h
Airflow Rate	Outdoor	High	2470 m3/h
Net Dimensions Indoor	Height		245 mm
	Width		570 mm
	Depth		570 mm
Net Dimensions Outdoor	Height		578 mm
	Width		790 mm
	Depth		315 mm
Net Weight	Indoor		16 kg (35 lbs)
Net Weight	Outdoor		44 kg (97 lbs)
Connection Pipe Diameter	Liquid		6.35 mm
Connection Pipe Diameter	Gas		15.88 mm
Drain Hose Diameter	Indoor		25 mm
Drain Hose Diameter	Outdoor		32 mm
Max. Pipe Length (Pre Charge)			30 (15) m
Max. Height Difference			20 m
Operation Range	Cooling		-10 to 46 °C DB
Operation Range	Heating		-15 to 24 °C DB
Refrigerant	Type		R410A
	Global Warming Potential		2,088
	Charge		1,700 g
