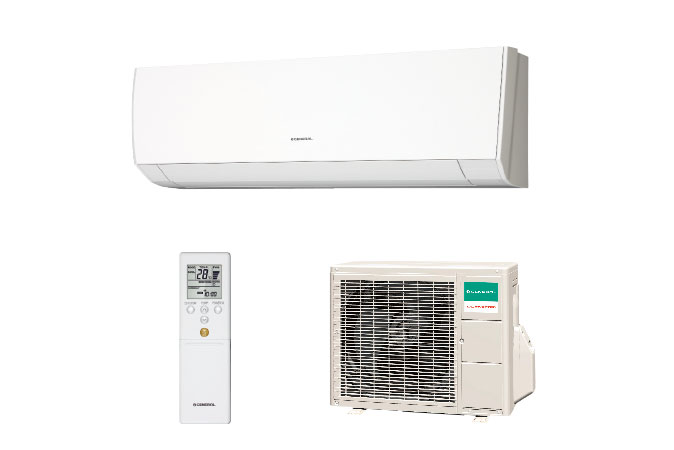

Wall Mount Standard Series (High Efficiency & Comfort) ASHG12LMCA

Indoor Unit :: ASHG12LMCA
Outdoor Unit :: AOHG12LMCA

Download :: Catalogues

Features

Highly efficient, compact design
More comfortable airflow
Powerful operation
10ºC heating operation
Low noise mode for outdoor unit
Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating.

Power diffuser: An additional louver that opens based on input from monitoring sensors to quickly enhance immediate comfort needs.

Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly.

10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied.

Low noise mode: Reduces the noise level of an outdoor unit.

Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature.

Vertical swing louver: The louver automatically swings up and down.

Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature.

Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.

Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep.

Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON.

Filter sign: Indicates the filter cleaning period by blinking.

Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic.

Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air.

Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment.

Set temperature auto return: The setting temperature automatically returns to the previously set temperature.

Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation.

Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week.

External ON/OFF input Special Cooling: Special Cooling

Capacity

3.4 kW

4.0 kW

Find a Distributor In Your Country

Specifications
Dimensions
Optional Parts

Specifications

Power Source	Phase		Single phase
	Voltage		230 V
	Frequency		50 Hz
Capacity	Cooling		3.4 kW(0.9 - 3.9) kW
Capacity	Heating		4.0 kW (0.9 - 5.3) kW
Input Power	Cooling		0.97 kW
Input Power	Heating		1.02 kW
EER	Cooling		3.50 W/W
COP	Heating		3.92 W/W
Pdesign	Cooling		3.4 kW
Pdesign	Heating (-10°C)		3.5 kW
SEER	Cooling		7.00 W/W
SCOP	Heating (Average)		4.00 W/W
Energy Efficiency Class	Cooling		A++
Energy Efficiency Class	Heating		A+
Max. Operating Current	Cooling		6.5 A
Max. Operating Current	Heating		9.0 A
Annual Energy Consumption	Cooling		170 kWh/a
Annual Energy Consumption	Heating		1225 kWh/a
Moisture Removal			1.8 I/h
Sound Pressure Level^*2	Indoor (Cooling)	High	43 dB(A)
		Middle	40 dB(A)
		Low	32 dB(A)
		Quiet	21 dB(A)
	Indoor (Heating)	High	43 dB(A)
		Middle	38 dB(A)
		Low	33 dB(A)
		Quiet	22 dB(A)
Sound Pressure Level^*2	Outdoor (Cooling)	High	50 dB(A)
Sound Pressure Level^*2	Outdoor (Heating)	High	50 dB(A)
Sound Power Level	Indoor (Cooling)	High	59 dB(A)
	Indoor (Heating)	High	59 dB(A)
	Outdoor (Cooling)	High	61 dB(A)
	Outdoor (Heating)	High	61 dB(A)
Airflow Rate	Indoor	High	750 m3/h
Airflow Rate	Outdoor	High	1830 m3/h
Net Dimensions Indoor	Height		268 mm
	Width		840 mm
	Depth		203 mm
Net Dimensions Outdoor	Height		535 mm
	Width		663 mm
	Depth		293 mm
Net Weight	Indoor		8.5 kg (19 lbs)
Net Weight	Outdoor		26 kg (57 lbs)
Connection Pipe Diameter	Liquid		6.35 mm
Connection Pipe Diameter	Gas		9.52 mm
Drain Hose Diameter	Indoor		13.8 mm
Drain Hose Diameter	Outdoor		15.8 to 16.7 mm
Max. Pipe Length (Pre Charge)			20 (15) m
Max. Height Difference			15 m
Operation Range	Cooling		-10 to 43 °C DB
Operation Range	Heating		-15 to 24 °C DB
Refrigerant	Type		R410A
	Global Warming Potential		2,088
	Charge		850 g

Scroll

Dimensions

Indoor Unit : ASHG12LMCA

Indoor unit

Optional Parts

Wired Remote Controller: UTY-RNNGM

Wired Remote Controller: UTY-RVNGM

Simple Remote Controller: UTY-RSNGM

Communication kits: UTY-TWBXF
