Wired Remote Controller UTY-RNRGZ5

Controller

Max. number of controllable units :
16 indoor units
Download :
Catalogues

Features

Easy to operate with a large high-resolution STN-LCD touch panel screen

  • Touch screen LCD
  • Built-in daily/weekly timer (On/Off, temperature, modes)
  • The backlit screen makes it easy to operate in the dark.
  • Room temperature display
  • Controls up to 16 indoor units.
  • Supports 12 languages: Chinese, Dutch, English, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, and Turkish
  • 2-wire type

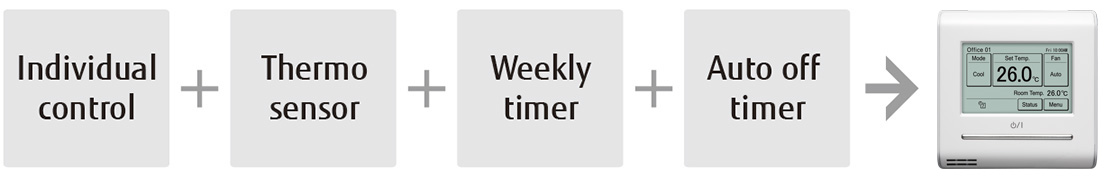

Compact and versatile

A single remote controller controls each connected indoor unit and provides a weekly timer function and a variety of energy-saving options.

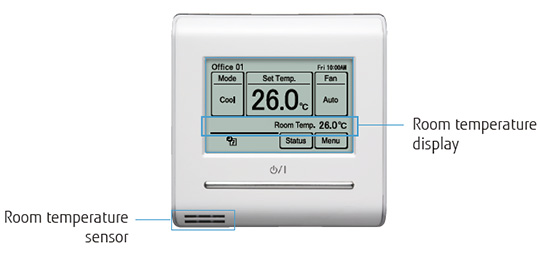

Built-in thermosensor

A thermosensor built into the remote controller monitors room temperature accurately.

Energy-saving options

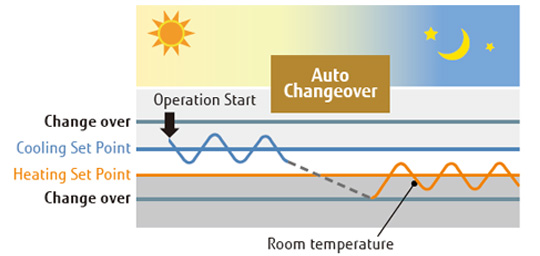

Custom Auto

Cooling temp. set at 27℃; Heating temp. set at 26℃

  • Maintains 2 separate set points for heating and cooling.
  • Automatically changes mode between heating and cooling.
*
This function is not available for some models.

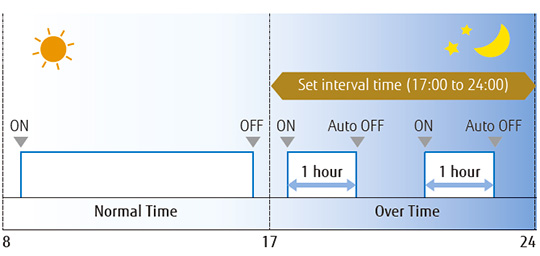

Auto-off timer

Usage example: Between 17:00 and 24:00, set the indoor unit to turn off 1 hour after the timer is activated.

  • The indoor unit turns itself off when the specified length of time has elapsed after the timer is activated.
  • A desired time frame can be specified for the Auto-off timer.

2-setting weekly timer

Set temperature auto return

Setting temperature range limitation

Specifications

Model Name UTY-RNRGZ5
Power Supply 12 V DC
Net Dimensions Height 120 mm
Width 120 mm
Depth 20.4 mm
Net Weight 220 g
Scroll
*
12 V DC supplied by an indoor unit
