Heat Pump Modular Type V-II Series AJH108LALH

33.5 kW

37.5 kW

Specifications

Rated Capacity Range	12
Max. Number of Connectable Indoor Units^*1	17
Connectable Capacity of Indoor Units	16.8 - 50.2 kW

Scroll

Power Source	Phase	3 phase 4 wire
	Voltage	400 V
	Frequency	50 Hz
Capacity	Cooling	33.5 kW
Capacity	Heating	37.5 kW
Input Power	Cooling	9.62 kW
Input Power	Heating	9.28 kW
EER	Cooling	3.48 W/W
COP	Heating	4.04 W/W
Airflow Rate		11,100 m³/h
Sound Pressure Level^*2	Cooling	58 dB(A)
Sound Pressure Level^*2	Heating	60 dB(A)
Max. External Static Pressure		80 Pa
Compressor Motor Output		3.9 + 4.5 kW
Heat Exchanger Fin		Blue fin
Net Dimensions	Height	1,690 mm
	Width	930 mm
	Depth	765 mm
Net Weight		275 kg
Refrigerant	Type	R410A
	Global Warming Potential	2,088
	Charge	11.8 kg
Connection Pipe Diameter	Liquid	12.70 mm
Connection Pipe Diameter	Gas	28.58 mm
Operation Range	Cooling	-15 to 46 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

Note:: Specifications are subject to the following conditions:
Cooling:: Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
Heating:: Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
Pipe length:: 7.5 m Height difference between outdoor unit and indoor unit: 0 m; When cooling operation will be conducted at outdoor air temperature below -5°C,; the outdoor unit must be installed in a position that is higher than or equal to those of indoor units.
^*1: Minimum connectable indoor unit number is 2.
^*2: The noise value is the value when measured in an anechoic room. When measured in the actual installed state,; surrounding noise and reflections are received and the measured value is usually larger than the indicated value.

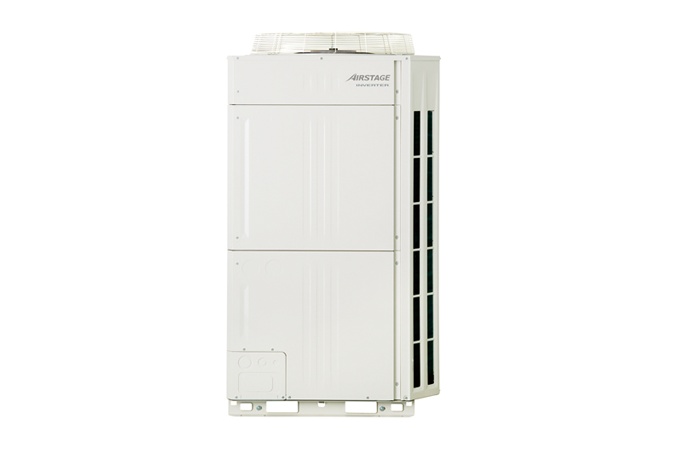

Outdoor unit
