Heat Pump Modular Type V-II Series AJH270LALHH

84.8 kW

95.0 kW

Specifications

Rated Capacity Range	32
Max. Number of Connectable Indoor Units^*1	48
Connectable Capacity of Indoor Units	44.7 - 134.1 kW

Scroll

Power Source	Phase	3 phase 4 wire
	Voltage	400 V
	Frequency	50 Hz
Capacity	Cooling	89.4 kW
Capacity	Heating	100.0 kW
Input Power	Cooling	24.75 kW
Input Power	Heating	24.28 kW
EER	Cooling	3.61 W/W
COP	Heating	4.12 W/W
Airflow Rate		11,100 × 3 m³/h
Sound Pressure Level^*2	Cooling	62 dB(A)
Sound Pressure Level^*2	Heating	64 dB(A)
Max. External Static Pressure		80 Pa
Compressor Motor Output		3.9 × 3 + 4.5 × 2 kW
Heat Exchanger Fin		Blue fin
Net Dimensions	Height	1,690 mm
	Width	930 × 3 mm
	Depth	765 mm
Net Weight		275 + 275 + 220 kg
Refrigerant	Type	R410A
	Global Warming Potential	2,088
	Charge	11.8 × 2 + 11.2 kg
Connection Pipe Diameter	Liquid	19.05 mm
Connection Pipe Diameter	Gas	34.92 mm
Operation Range	Cooling	-5 to 46 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

Note:: Specifications are subject to the following conditions:
Cooling:: Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
Heating:: Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
Pipe length:: 7.5 m Height difference between outdoor unit and indoor unit: 0 m; When cooling operation will be conducted at outdoor air temperature below -5°C,; the outdoor unit must be installed in a position that is higher than or equal to those of indoor units.
^*1: Minimum connectable indoor unit number is 2.
^*2: The noise value is the value when measured in an anechoic room. When measured in the actual installed state,; surrounding noise and reflections are received and the measured value is usually larger than the indicated value.

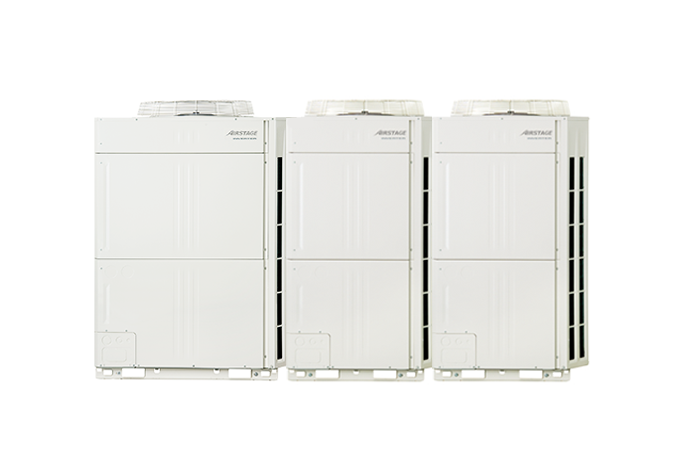

Outdoor unit
