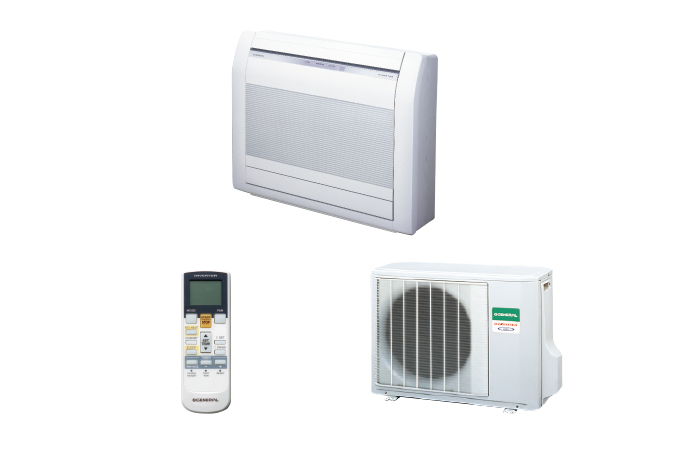

Floor Compact & Comfort AGHG12LVCA

Indoor Unit :: AGHG12LVCA
Outdoor Unit :: AOHG12LVCA

Download :: Catalogues

Features

Outstanding energy-saving performance
2-fan and wide airflow
Flexible and easy installation
Flexible pipe connection enables draining and piping in 6 directions
Smart device control (optional)
10ºC heating operation
Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating.

10ºC heating operation: The room temperature can be set to not go below 10°C so that the room will not become too cold when unoccupied.

Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature.

Vertical swing louver: The louver automatically swings up and down.

Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature.

Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.

Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep.

Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON.

Filter sign: Indicates the filter cleaning period by blinking.

Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic.

Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air.

Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment.

Set temperature auto return: The setting temperature automatically returns to the previously set temperature.

Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation.

Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week.

External ON/OFF input Special Cooling: Special Cooling

Capacity

3.5 kW

4.5 kW

Find a Distributor In Your Country

Specifications
Dimensions
Optional Parts

Specifications

Power Source	Phase		Single phase
	Voltage		230 V
	Frequency		50 Hz
Capacity	Cooling		3.5 kW(0.9 - 4.0) kW
Capacity	Heating		4.5 kW (0.9 - 6.6) kW
Input Power	Cooling		0.94 kW
Input Power	Heating		1.19 kW
EER	Cooling		3.72 W/W
COP	Heating		3.78 W/W
Pdesign	Cooling		3.5 kW
Pdesign	Heating (-10°C)		3.8 kW
SEER	Cooling		6.50 W/W
SCOP	Heating (Average)		4.00 W/W
Energy Efficiency Class	Cooling		A++
Energy Efficiency Class	Heating		A+
Max. Operating Current	Cooling		7.0 A
Max. Operating Current	Heating		10.0 A
Annual Energy Consumption	Cooling		188 kWh/a
Annual Energy Consumption	Heating		1330 kWh/a
Moisture Removal			1.8 I/h
Sound Pressure Level^*2	Indoor (Cooling)	High	40 dB(A)
		Middle	35 dB(A)
		Low	29 dB(A)
		Quiet	22 dB(A)
	Indoor (Heating)	High	40 dB(A)
		Middle	35 dB(A)
		Low	29 dB(A)
		Quiet	22 dB(A)
Sound Pressure Level^*2	Outdoor (Cooling)	High	48 dB(A)
Sound Pressure Level^*2	Outdoor (Heating)	High	49 dB(A)
Sound Power Level	Indoor (Cooling)	High	55 dB(A)
	Indoor (Heating)	High	56 dB(A)
	Outdoor (Cooling)	High	64 dB(A)
	Outdoor (Heating)	High	65 dB(A)
Airflow Rate	Indoor	High	570 m3/h
Airflow Rate	Outdoor	High	1680 m3/h
Net Dimensions Indoor	Height		600 mm
	Width		740 mm
	Depth		200 mm
Net Dimensions Outdoor	Height		540 mm
	Width		790 mm
	Depth		290 mm
Net Weight	Indoor		14 kg (31 lbs)
Net Weight	Outdoor		36 kg (79 lbs)
Connection Pipe Diameter	Liquid		6.35 mm
Connection Pipe Diameter	Gas		9.52 mm
Drain Hose Diameter	Indoor		13.8 mm
Drain Hose Diameter	Outdoor		15.8 to 16.7 mm
Max. Pipe Length (Pre Charge)			20 (15) m
Max. Height Difference			15 m
Operation Range	Cooling		-10 to 43 °C DB
Operation Range	Heating		-15 to 24 °C DB
Refrigerant	Type		R410A
	Global Warming Potential		2,088
	Charge		1,050 g

Scroll

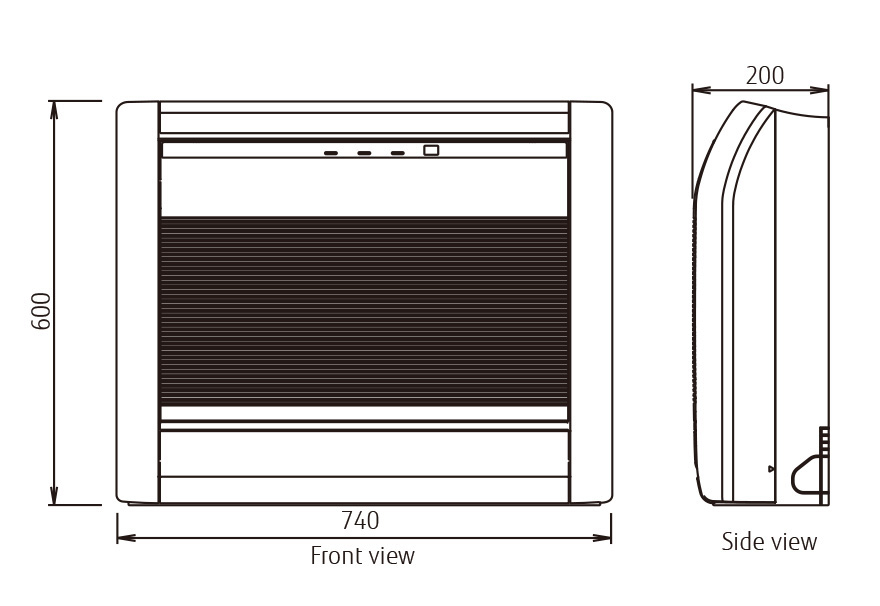

Dimensions

Indoor Unit : AGHG12LVCA

Indoor unit

Optional Parts

Wired Remote Controller: UTY-RNNGM

Wired Remote Controller: UTY-RVNGM

Simple Remote Controller: UTY-RSNGM

Half Concealed Kit: UTR-STA
