Wall Mount ECO Series (Comfort for Large Rooms) ASHH18KLCBL

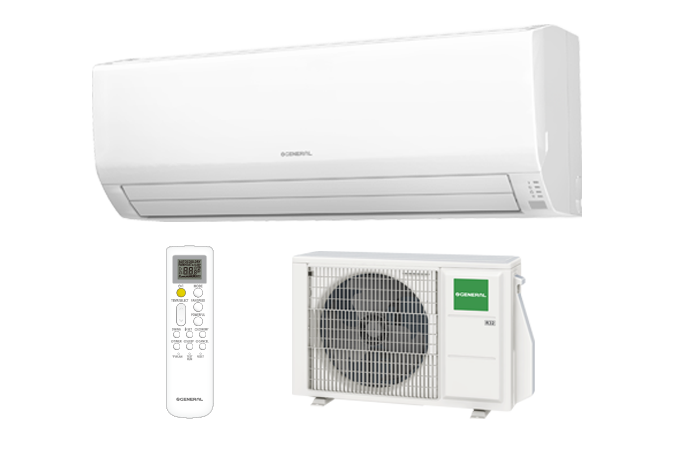

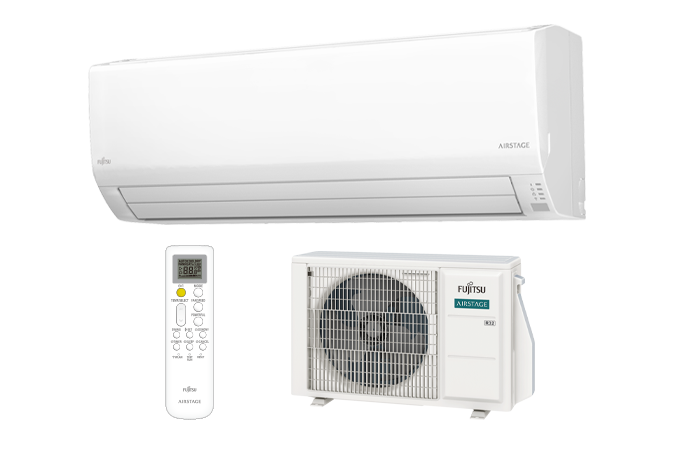

Indoor unit, Remote controller, Outdoor unit

Refrigerant R32 ALL DC
Indoor Unit :
ASHH18KLCBL
Outdoor Unit :
AOHH18KLCB
Download :
Catalogues

Features

  • Narrow Width & Compact Design
  • Economy Operation
  • Powerful operation
  • Smart Device Control
  • Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Filter sign: Indicates the filter cleaning period by blinking. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Washable panel: Since the front panel is easy to remove, maintenance is also easy. Blue fin

Capacity

Cooling   5.2 kW
Heating   6.3 kW

Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 5.2 (0.9 - 5.5) kW
Heating 6.3 (0.6 - 7.6) kW
Input Power Cooling 1.685 kW
Heating 1.800 kW
EER Cooling 3.09 W/W
COP Heating 3.50 W/W
Pdesign Cooling 5.2 kW
Heating (-10°C) 4.8 kW
SEER Cooling 7.20 W/W
SCOP Heating (Average) 4.30 W/W
Heating (Warmer) 6.30 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Heating (Warmer) A+++
Max. Operating Current Cooling 9.50 A
Heating 13.50 A
Annual Energy Consumption Cooling 253 kWh/a
Heating (Average) 1563 kWh/a
Heating (Warmer) 556 kWh/a
Moisture Removal 1.90 l/h
Sound Pressure Level*2 Indoor (Cooling) High 47 dB(A)
Middle 44 dB(A)
Low 40 dB(A)
Quiet 35 dB(A)
Indoor (Heating) High 50 dB(A)
Middle 45 dB(A)
Low 41 dB(A)
Quiet 37 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 50 dB(A)
Outdoor (Heating) High 56 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 61 dB(A)
Outdoor (Heating) High 66 dB(A)
Airflow Rate Indoor (Cooling) High 865 m³/h
Outdoor (Cooling) High 1830 m³/h
Net Dimensions
Indoor		 Height 293 mm
Width 790 mm
Depth 249 mm
Net Dimensions
Outdoor		 Height 542 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 9.5 kg
Outdoor 33.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 25.0 (15.0) m
Max. Height Difference 20 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 850 g (0.574 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASHH18KLCBL

Indoor unit

Outdoor Unit : AOHH18KLCB
