For Tenants in Small to Midsize Commercial Premises

• Individual control and monitoring of up to 100 indoor units
• 7.0inch TFT color screen
• Visually intuitive operation
• Room temperature display by indoor unit sensor & remote controller sensor
• 50 Remote Controller Groups Display & remote controller group rename
• Supports 13 languages: Chinese (Simplified/Traditional), Dutch, English, French, German, Greek, Italian, Polish, Portuguese, Spanish, Turkish, and Thai (Remote Management only)

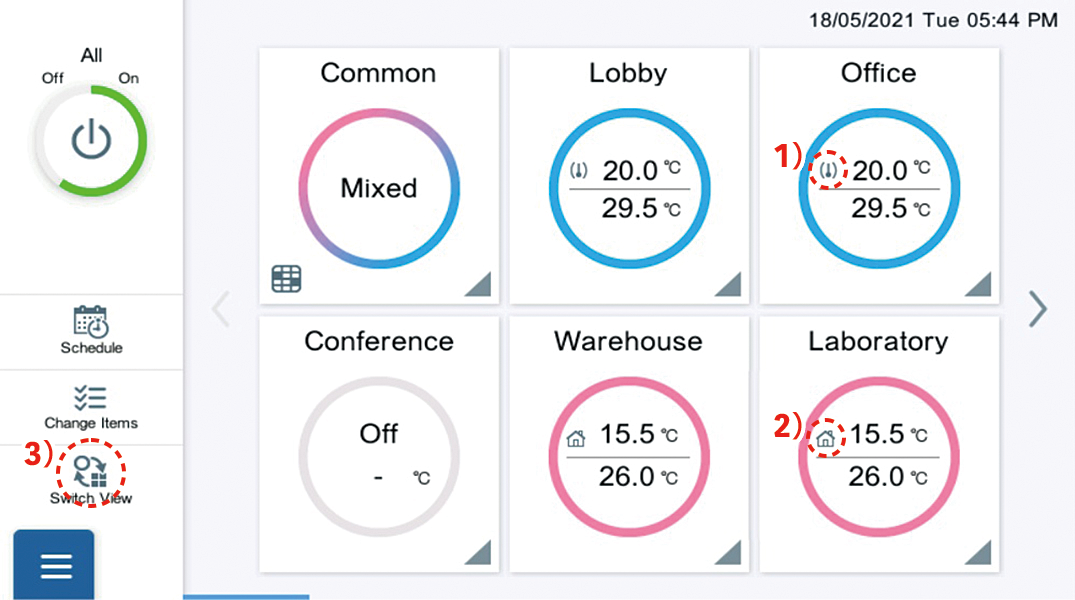

Air conditioning management by detecting room temperatures of each room

The room temperature detected with indoor unit sensor or remote controller sensor can be displayed.

This model can detect the room temperature by indoor units sensors even if wired remote controllers are not connected to the indoor units.

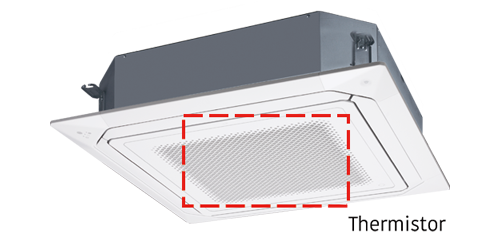

1) Not connected wired remote controller

Indoor Unit Sensor

*

Room temperature is displayed only when indoor unit operates.

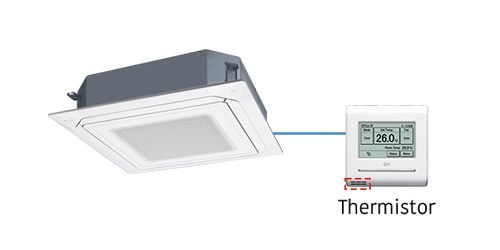

2) Connected wired remote controller

Remote Controller Sensor / other sensors

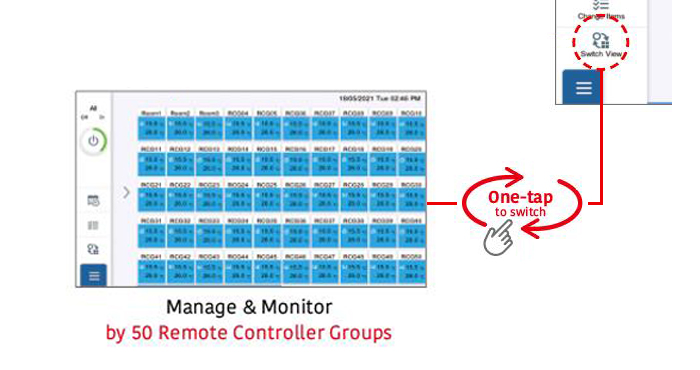

3) 50 Remote Controller Groups Display

The group display and the 50 remote controller groups display can be switched easily.

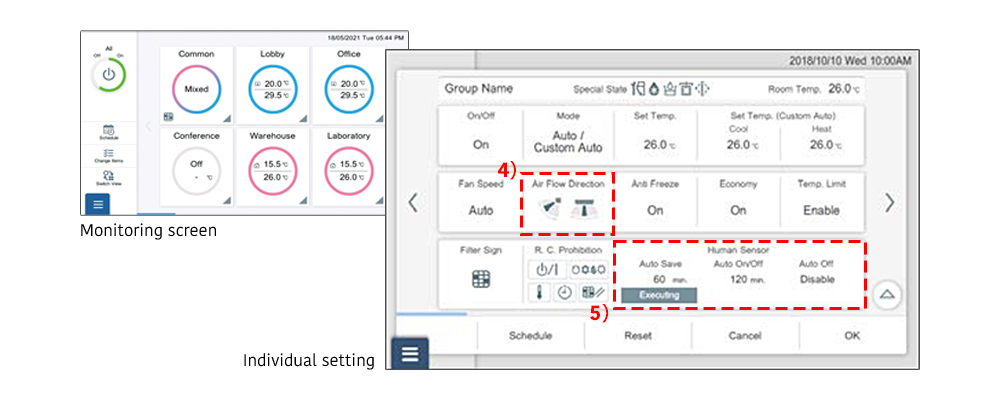

Features: Central Remote Controller

• Easy intuitive operation from the touch panel display.
• All functions can be accessed through the monitoring screen showing a pop-up window for detailed operation.

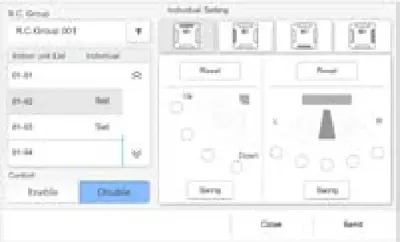

4) Added individual wind direction control

Individual wind direction control has been added.

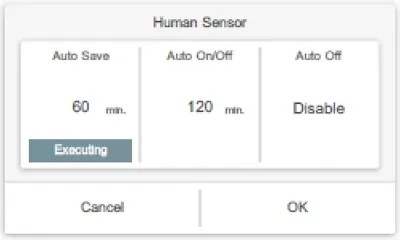

5) Occupancy sensor Compatible

Occupancy sensor setting

• Auto save
• Auto on / off
• Auto off detection time
• Enable and disable

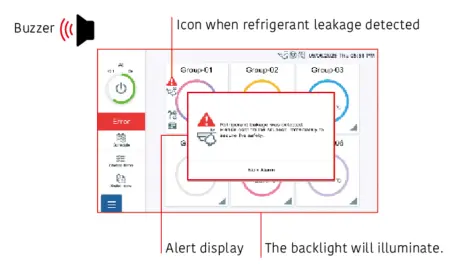

Refrigerant leak response

If a refrigerant leakage occurs, the buzzer will sound, the backlight will illuminate, and a message indicating a refrigerant leakage will appear on the display.

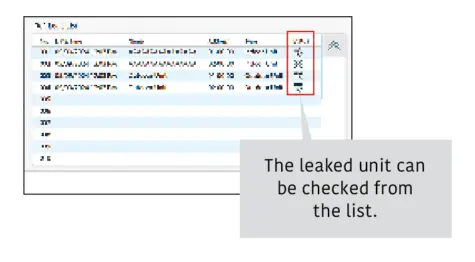

Leaking indoor unit list function

The refrigerant sensor’s operation is also recorded as history, enabling smooth troubleshooting by service technicians.

Detector replacement notification

One year before the detector replacement deadline, a message and icon will appear, and the display backlight will illuminate. This indicates that it is time to replace the detector.

Remote monitoring / Remote operation

The central remote controller can control your tenant’s air conditioner anytime and anywhere.

When the central remote controller manages the indoor units of some tenants, air conditioning of each tenant can be managed separately online.

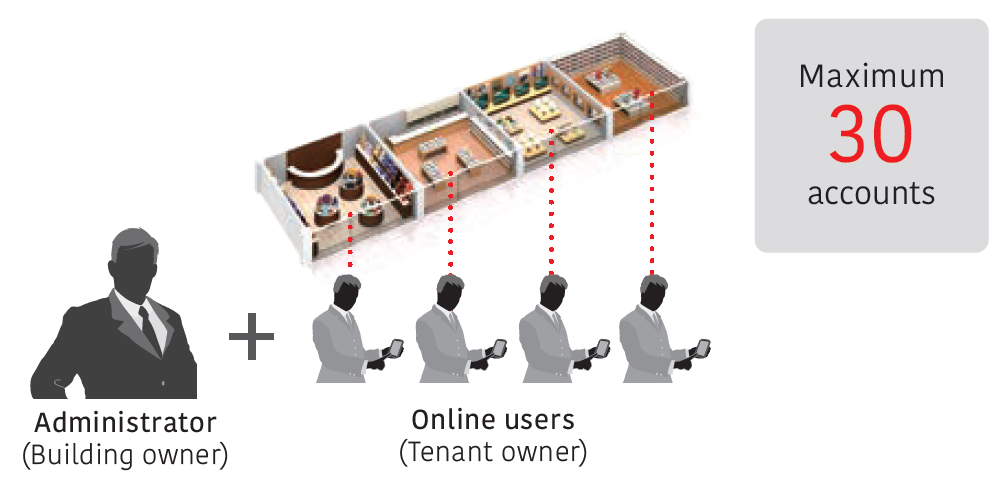

Increased the Number of Accounts

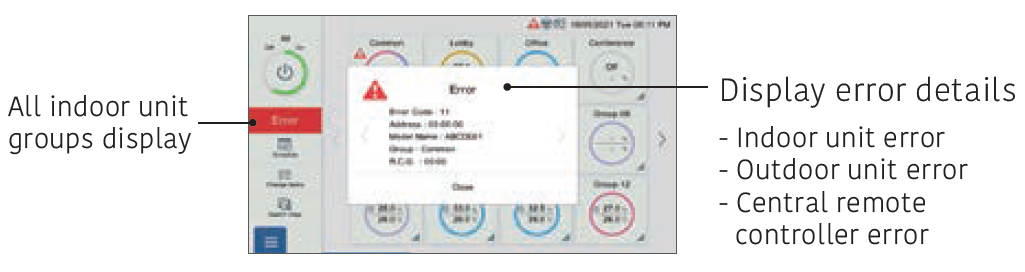

Trouble support function

Display error details

Display descriptive explanation when an error occurs.

Sensor value monitoring function

Monitor sensor data of indoor unit / outdoor unit, send mail

Notify room temperature by email*

Notify by e-mail when the temperature around the air conditioner is too high or too low.

*

This function is available only when using wired remote controller.

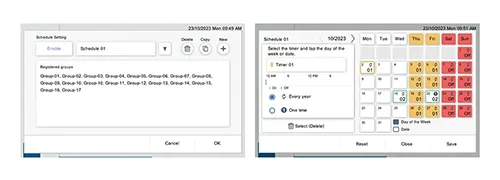

Annual schedule

• An annual schedule can be arranged for each remote controller group or user-defined group.
• Allows for the programming of special settings for weekends, holidays, and store closings throughout the year.

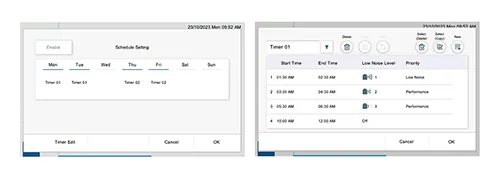

low noise schedule

Low noise operation of outdoor units can be scheduled.

Automatic return to set temperature

A function that automatically returns the changed temperature to its original value over time.
