• Stylish look
• Large 10.1-inch TFT color LCD screen
• Touchscreen and Intuitive usability
• Capable of controlling up to 400 indoor units
• Supports 6 languages: Chinese, English, French, German, Polish, and Spanish.
• Capable of displaying refrigerant leak lisk

Installation Example

*

When connecting to Split and Multi-split products, the available functions are limited.

Compact and sleek appearance​

Its compact and clean appearance makes it a design that matches the interior of offices and commercial facilities.

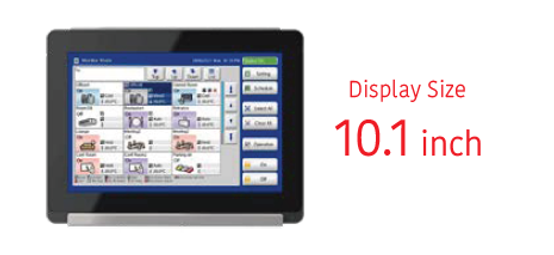

The large screen makes it easy to operate.

Features a large, easy-to-view 10.1-inch display. The icons displayed are also large, enabling intuitive operation.

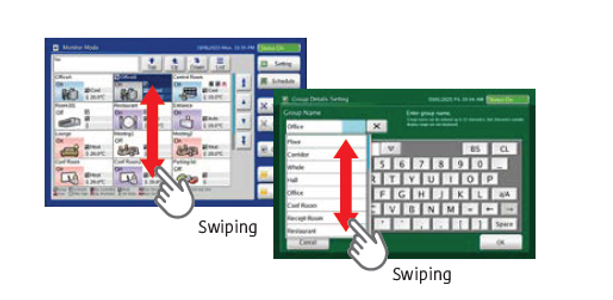

Intuitive usability

Scrolling and pull-down lists can be operated by swiping. Numerical values can be changed using the pull-down list.

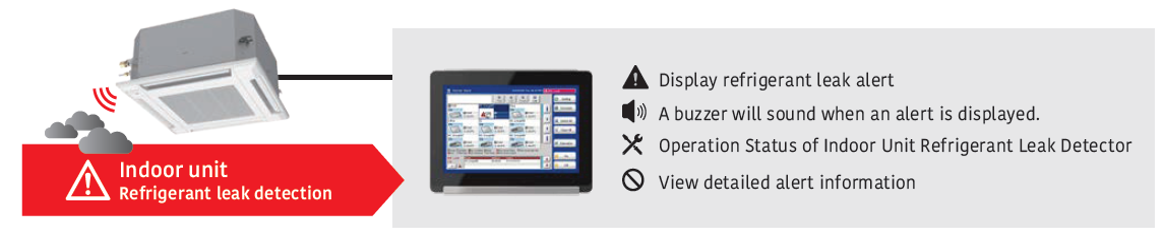

Safety Measures for R32 Products*1​

If a refrigerant leakage is detected in the indoor unit, the following measures will be taken.

*1

The necessity of a refrigerant leak detector varies depending on room conditions. For details, please refer to the Design & Technical Manual.

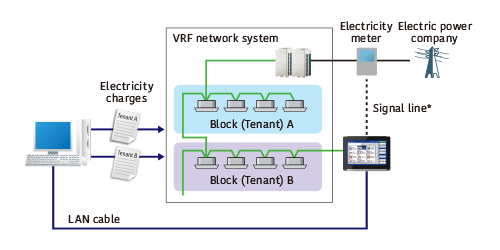

Electricity Charge Apportionment (Online Activation)

• Energy cost can be calculated and allocated to each billing user in proportion to the amount of energy used for air conditioning.



*

An electricity usage meter can be connected to an external input connector of the Touch panel controller. In that case, the meter cannot be connected to an outdoor unit at the same time.

Easy Installation

• The touch panel controller can be mounted on a wall.
• Flat back surface enables easy installation anywhere on a wall.
• No additional parts or components required for installation

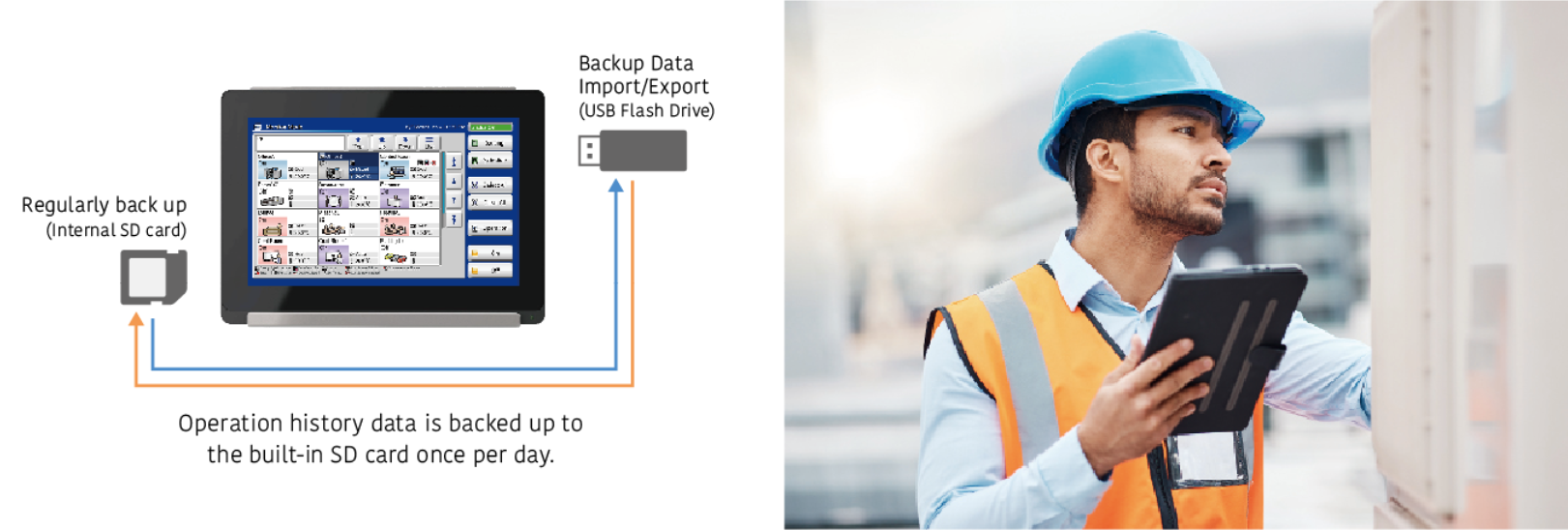

Service & Support Made Easy

This is an operation history accumulation function that enables service personnel to analyze and restore equipment when malfunctions occur.
