Heat Pump for Small Capacity Type J-VL Series AJY126KELAH  [3Phase]

Outdoor unit

Outdoor Unit :
AJY126KELAH
Download :
Catalogues

Features

  • R32 Refrigerant with Reduced Global Warming Potential
  • High Energy Saving
  • High installation Flexibility
  • Slim design yet large capacity
  • Supports concealed installation
  • Environmentally conscious with low-noise mode

Capacity

Cooling   40.0 kW
Heating   40.0 kW (Nominal) / 45.0 kW (Max.)

Specifications

Rated Capacity Range 14 HP
Max. Number of Connectable Indoor Units*1 1 - 36
Scroll
Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 40.0 kW
Nominal Heating 40.0 kW
Max. Heating 45.0 kW
Input Power Cooling 11.87 kW
Nominal Heating 8.80 kW
Max. Heating 10.67 kW
EER Cooling 3.37 W/W
COP Nominal Heating 4.55 W/W
Max. Heating 4.22 W/W
SEER Cooling 7.42
SCOP Heating 4.56
ηc Cooling 293.8 %
ηh Heating 179.4 %
Airflow Rate 13000 m³/ 13000 h
Sound Pressure Level*2 Cooling 63 dB(A)
Heating 65 dB(A)
Sound Power Level Cooling 75 dB(A)
Heating 76 dB(A)
Heat Exchanger Fin Blue fin
Net Dimensions Height 1638 mm
Width 1080 mm
Depth 480 mm
Net Weight 213 kg
Refrigerant Type R32
Global Warming Potential 675
Charge 9.0 kg (6.075 CO2eq–T)
Connection Pipe Diameter Liquid φ12.70 mm
Gas φ28.58 mm
Total Pipe Length 400 m
Max. Height Difference
(Outdoor Unit: Upper/Lower)		 50 / 40 m
Operation Range Cooling -5 to 46 °C
Heating -20 to 21 °C
Scroll
Note:
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating:
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length:
7.5 m; Height difference between outdoor unit and indoor unit: 0 m.
*
The cooling operation range of -15 to 46°C is allowed only when all of the indoor units connected to the system are higher than capacity of 5.6kW.

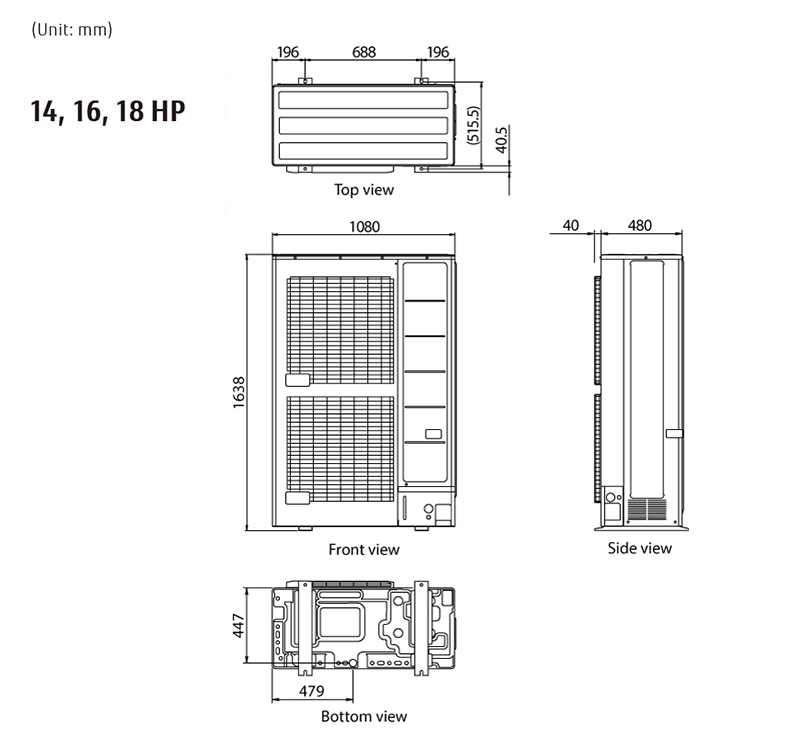

Dimensions

Outdoor Unit : AJY126KELAH

Outdoor unit
