Wall-mounted type ASHH12KLTBL

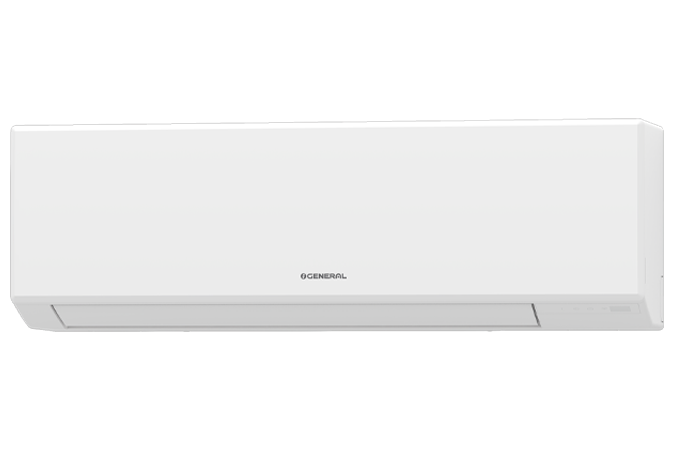

Indoor Unit

Indoor Unit :
ASHH12KLTBL

Feature Icons

Save Occupancy sensor : The Occupancy sensor detects the movement of people in the room and determines whether to switch to energy saving operation. Economy operation : The thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Powerful operation: Operation at maximum air flow and compressor speed, that quickly makes the room comfortable. 10ºC Heat: The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied. Outdoor unit low noise operation: The noise level of the outdoor unit can be selected. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. UP/DOWN swing louver: The vertical louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air. Washable panel: Since the front panel is easy to remove, maintenance is also easy.

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. External error output Silver Ion Filter: The Silver ion filter helps to keep indoor air free from viruses, bacteria and molds.

Specifications

kW Class 3.5 kW
Power Source Phase Single phase
Voltage ~ 230 V
Frequency 50 Hz
Sound Pressure Level*2
(High/Middle/Low/Quiet)		 Cooling 43 / 37 / 30 / 21 dB(A)
Heating 43 / 37 / 32 / 23 dB(A)
Sound Power Level
(High)		 Cooling 57 dB(A)
Heating 57 dB(A)
Airflow Rate
(High/Middle/Low/Quiet)		 Cooling 640 / 490 / 370 / 240 m³/h
Heating 640 / 490 / 400 / 260 m³/h
Net Dimensions Height 250 mm
Width 770 mm
Depth 218 mm
Net Weight 7.5 kg
22 lbs
Connection Pipe Diameter Liquid 6.35 mm
Gas 9.52 mm
