Medium Static Pressure Duct ARXG24KMLA

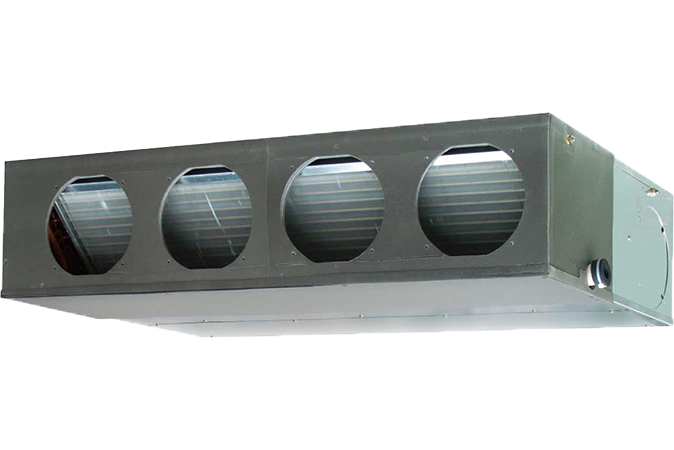

Indoor Unit

Indoor Unit :
ARXG24KMLA

Feature Icons

Economy operation : The thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Connectable distributing duct: Locally purchased branch ducts can be attached to the systems to distribute the airflow. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly timer: Different ON-OFF times can be set for each day. Weekly & Temperature setback timer: Weekly & Temperature setback timer can set the temperature for 2-time spans and for each day of the week. Filter sign: Indicates the filter cleaning period by blinking. External ON/OFF input Special Cooling: Special Cooling

Options

Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. 10ºC Heat: The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied. UP/DOWN swing louver: The vertical louver automatically swings up and down. Fresh air intake: Fresh air can be taken in by a fan connected to an external control unit. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Program timer: This digital timer allows selection of one of four options: ON, OFF, ON » OFF, or OFF » ON. Wireless LAN control: The optional WLAN adapter enables the air conditioner to be operated by smartphone or tablet PC from outside the home. Long-life filter Silver Ion Filter Drain pump as standard

Specifications

kW Class 7.0 kW
Power Source Phase Single phase
Voltage ~ 230 V
Frequency 50 Hz
Sound Pressure Level*2
(High/Middle/Low/Quiet)		 Cooling 31 / 29 / 27 / 25 dB(A)
Heating 31 / 29 / 27 / 25 dB(A)
Sound Power Level
(High)		 Cooling 60 dB(A)
Heating 62 dB(A)
Airflow Rate
(High/Middle/Low/Quiet)		 Cooling 1,100 / 910 / 750 / 580 m³/h
Heating 1,100 / 910 / 750 / 580 m³/h
Net Dimensions Height 270 mm
Width 1,135 mm
Depth 700 mm
Net Weight 35 kg
77 lbs
Connection Pipe Diameter Liquid 6.35 mm
Gas 12.70 mm
External Static Pressure 30 to 150
Drain Pump Standard
Scroll

Optional Parts

Wired Remote Controller
Controller
UTY-RVRG
Compact Wired Remote Controller
Controller
UTY-RCRGZ1
Wired Remote Controller with Touch Panel
Controller
UTY-RNRGZ3
Wired Remote Controller
Controller
UTY-RLRG
Simple Remote Controller
UTY-RSRG
Simple Remote Controller
UTY-RHRG (Without operation mode)
Wired Remote Controller
UTY-RVNGM
Wired Remote Controller
UTY-RNNGM
Simple Remote Controller
UTY-RSNGM
Central Remote Controller
UTY-DMMGM1
Fresh Air Intake Kit
UTZ-VXAA
Air Outlet Shutter Plate
UTR-YDZB
Insulation Kit for High Humidity
UTZ-KXGC
Wireless LAN Adapter
UTY-TFSXJ3
UTY-TFSXJ3
Wireless LAN Adapter
UTY-TFNXZ1
Wireless LAN Adapter
FJ-RC-WIFI-1
KNX® Interface
FJ-RC-KNX-1i
Modbus Interface
FJ-RC-MBS-1
external connect kits
UTY-XWZX
External Control Set
UTD-ECS5A
